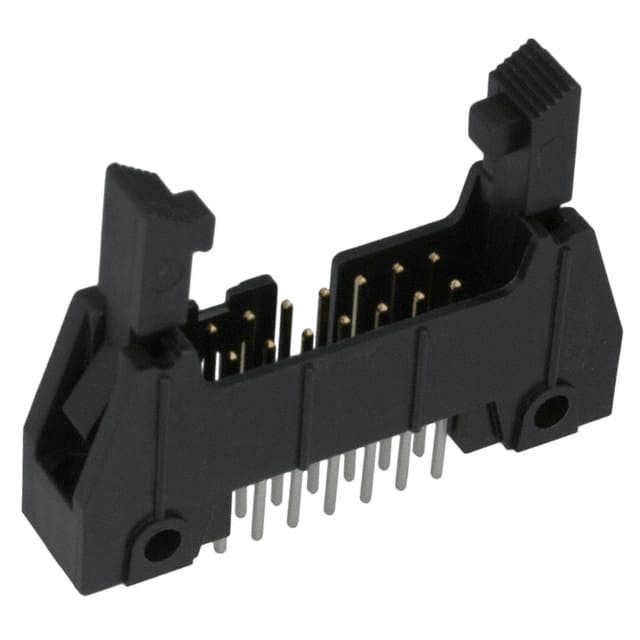

The 3M N3314-6302RB is a 14-position, 2-row male pin header with a 2.54mm (0.100") pitch. It is designed for board-to-cable/wire applications and features a shrouded - 4 wall housing for improved mating reliability. The connector uses through hole mounting with solder termination.
The header is constructed with a black polycyclohexylenedimethylene terephthalate (PCT) and polyester glass filled insulator, rated UL94 V-0 for flammability. Contacts are made of copper alloy with a tin finish (30µin) and have a square contact shape. The fastening type includes latch lock/eject hooks, long, ensuring secure connection.
Key specifications include a current rating of 1.75A and an operating temperature range of -55°C to 105°C. The overall contact length is 0.652" (16.56mm) with an insulation height of 0.680" (17.27mm). Additional features include a keying slot and mounting flange for alignment and secure attachment.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.51 | $2.51 |
| 10+ | $2.14 | $2.14 |
| 250+ | $1.67 | $1.67 |
| 350+ | $1.66 | $1.66 |
| 5,250+ | $1.63 | $1.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions.
2.54mm (0.100").
1.75A.
Through hole.
-55°C to 105°C.
Yes, it features a shrouded - 4 wall design.
Tin with 30µin thickness.
