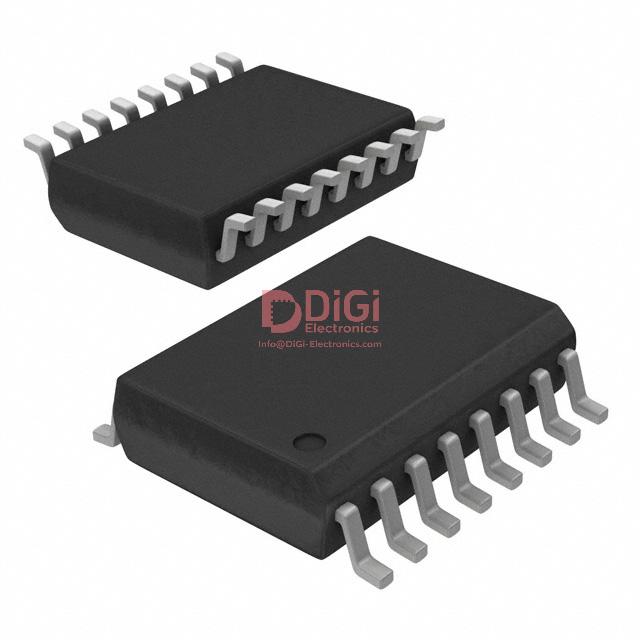

N25Q128A11BSF40F The Micron N25Q128A11BSF40F is a 128Mbit NOR Flash memory with SPI interface. It operates at 108MHz clock and across 1.7V to 2V supply range.
Mfr Part #:

N25Q128A11BSF40F

Available from 1 distributors
Mfr Name: Micron Technology
Micron Technology
The Micron N25Q128A11BSF40F is a 128Mbit NOR Flash memory with SPI interface. It operates at 108MHz clock and across 1.7V to 2V supply range.
✓ Total Stock: 3,690 pcs
$ Price Range: $1.28

N25Q128A11BSF40F Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
3,690 pcs
On Request
3690 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

N25Q128A11BSF40F Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Frequency
Interface
Lead Spacing
Lead Style
Memory Format
Memory Organization
Memory Size
Memory Type
Mounting Type
Operating Temperature
Operating Voltage
Supplier Device Package
Technology
View Similar Products (0)

N25Q128A11BSF40F Description

Short technical summary and product information.

The Micron N25Q128A11BSF40F is a 128Mbit NOR Flash memory device using SPI interface. It is organized as 16M x 8 and operates at a maximum clock frequency of 108MHz. The device supports write cycle times of 8ms for word operations and 5ms for page operations.



This memory operates over a supply voltage range of 1.7V to 2V and a temperature range of -40°C to 85°C, making it suitable for industrial applications. The N25Q128A11BSF40F is packaged in a surface-mount 16-SOIC package with a width of 7.50mm, also known as 16-SOP2.



Typical applications include program code storage, data logging, and firmware updates in embedded systems.

N25Q128A11BSF40F Quick Information

Product Type: NOR Flash Memory
Series: N25Q128A
Canonical Name: Micron N25Q128A11BSF40F 128Mbit SPI NOR Flash Memory
Subcategory: SPI NOR Flash

N25Q128A11BSF40F Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

N25Q128A11BSF40F Estimated Pricing

Qty Low High
1+ $1.28 $1.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

N25Q128A11BSF40F Features

  • 128Mbit NOR Flash with SPI interface.
  • 108 MHz maximum clock frequency.
  • 1.7V to 2V supply voltage range.
  • Surface mount 16-SOIC package.
  • 16M x 8 memory organization.

N25Q128A11BSF40F Applications

  • Stores firmware for microcontrollers in devices.
  • Holds boot code in SPI applications.
  • Provides storage for configuration parameters.
  • Logs data in industrial control systems.

N25Q128A11BSF40F FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range for the N25Q128A11BSF40F?

1.7V to 2V.

What package does the N25Q128A11BSF40F come in?

16-SOIC (0.295", 7.50mm Width) / 16-SOP2.

What is the operating temperature range of the N25Q128A11BSF40F?

-40°C to 85°C.

What is the memory size of the N25Q128A11BSF40F?

128 Mbit.

What type of memory technology does it use?

NOR Flash.

What interface does the N25Q128A11BSF40F use?

SPI.

What is the maximum clock frequency of the N25Q128A11BSF40F?

108 MHz.
