| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
336 pcs
|
336 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
44 pcs
|
44 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination |

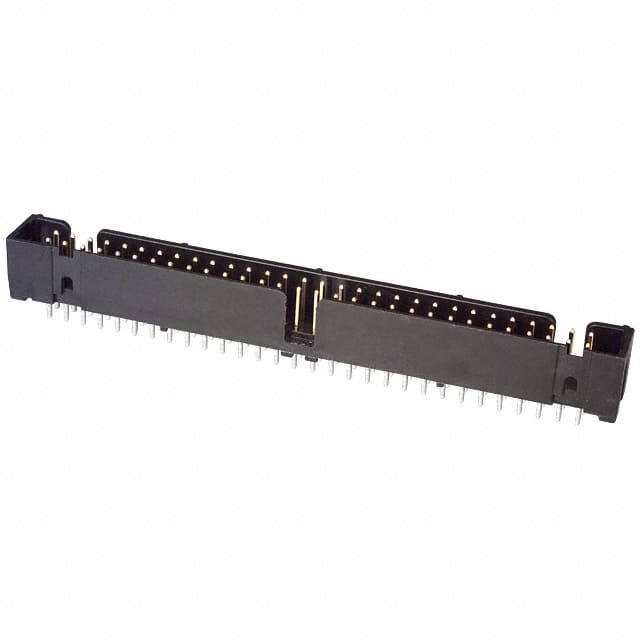

The 3M N2560-6002-RB is a 60-position shrouded header connector designed for board-to-board or cable-to-board applications. It features two rows with a 2.54mm pitch and row spacing, and uses through hole solder termination for secure mounting.
Key specifications include a current rating of 1.75A per contact, an operating temperature range of -55°C to 105°C, and a UL94 V-0 flammability rating for the insulation material. The contacts are made of copper alloy with a tin finish and are square shaped for reliable connectivity.
The connector has a push-pull fastening type and includes a keying slot for correct orientation. The insulation material is black polycyclohexylenedimethylene terephthalate (PCT), polyester, glass filled. All 60 positions are loaded.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.37 | $5.37 |
| 10+ | $4.70 | $4.70 |
| 25+ | $4.50 | $4.50 |
| 50+ | $4.41 | $4.41 |
| 100+ | $3.69 | $3.69 |
| 168+ | $3.52 | $3.52 |
| 1,008+ | $3.46 | $3.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 60 positions, all loaded, arranged in 2 rows.
The pitch is 2.54mm (0.100 inches), with the same row spacing.
The current rating is 1.75A per contact.
It is through hole mounting with solder termination.
The operating temperature range is -55°C to 105°C.
The insulation material has a UL94 V-0 flammability rating.
The contact finish is tin with a thickness of 30.0µin (0.76µm).
