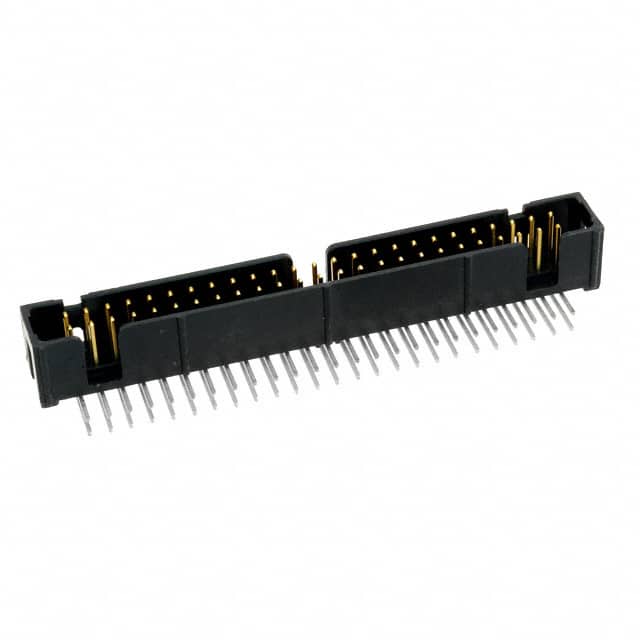

The 3M N2550-5002-RB is a 50-position rectangular connector header designed for board-to-board or cable applications. It features a 2.54mm pitch and row spacing, with all positions loaded. The connector uses a through-hole, right-angle mounting style and solder termination, making it suitable for perpendicular PCB connections.
This shrouded header has a 4-wall design with a keying slot for polarization, and a push-pull fastening type. The insulator is black, made from glass-filled PCT/polyester with a UL94 V-0 flammability rating. The male square pins are made of copper alloy with a tin contact finish (30.0µin). The contact length is 6.17mm and the insulation height is 8.59mm.
Electrical rating is 1.75A per contact. The operating temperature range is -55°C to 105°C. The part is RoHS3 compliant (unverified) and has an MSL of Level 1 (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $4.60 | $4.60 |
| 10+ | $4.13 | $4.13 |
| 25+ | $3.95 | $3.95 |
| 50+ | $3.78 | $3.78 |
| 224+ | $3.27 | $3.27 |
| 448+ | $3.13 | $3.13 |
| 1,120+ | $3.03 | $3.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 positions, all loaded, in 2 rows.
2.54mm (0.100") pitch with 2.54mm row spacing.
1.75A per contact.
Through hole, right angle with solder termination.
-55°C to 105°C.
Tin, 30.0µin (0.76µm) thickness over copper alloy.
Yes, it has a 4-wall shrouded design with a keying slot.
