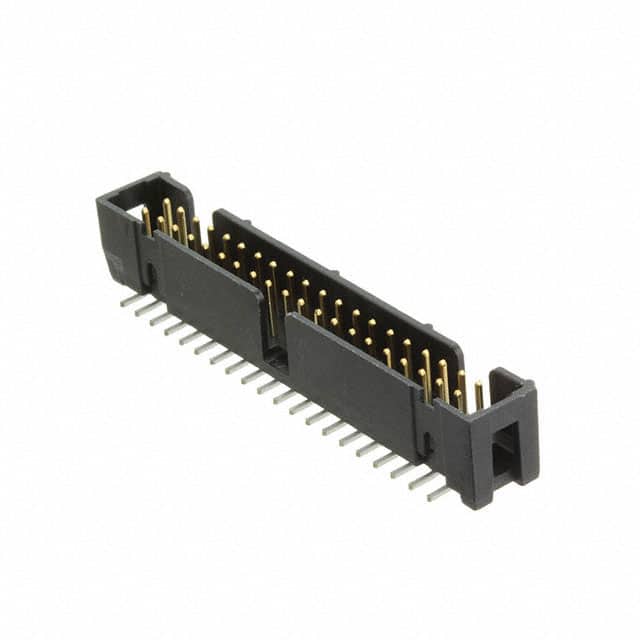

The 3M N2540-6V0C-RB-WG is a 40-position, 2-row rectangular connector header designed for surface mount applications. It features a 2.54mm (0.100") pitch and a shrouded 4-wall design that provides mating alignment and protection for the male pins. The header is constructed with a black polycyclohexylenedimethylene terephthalate (PCT) glass-filled insulator and copper alloy contacts with a tin plating of 30.0µin (0.76µm).
This connector is rated for a current of 1.75A per contact and operates over a temperature range of -55°C to 105°C. The contact shape is square with a mating pin length of 6.17mm and an insulation height of 9.91mm. The header includes a keying slot for correct orientation and is pick and place compatible for automated assembly.
The N2540-6V0C-RB-WG is suitable for board-to-board or cable applications requiring a reliable, polarized connection. The push-pull fastening type allows for easy mating and unmating. The material flammability rating is UL94 V-0, ensuring compliance with safety standards.
The header is terminated via solder to the surface mount pads, and all 40 positions are loaded. The row spacing is also 2.54mm, matching the pitch for consistent grid layout.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.25 | $7.25 |
| 10+ | $6.17 | $6.17 |
| 100+ | $4.99 | $4.99 |
| 200+ | $4.74 | $4.74 |
| 400+ | $4.61 | $4.61 |
| 1,000+ | $4.24 | $4.24 |
| 2,400+ | $4.23 | $4.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 positions.
2.54mm (0.100").
1.75A.
Surface mount.
-55°C to 105°C.
RoHS3 Compliant (unverified).
Polycyclohexylenedimethylene Terephthalate (PCT), glass filled.
