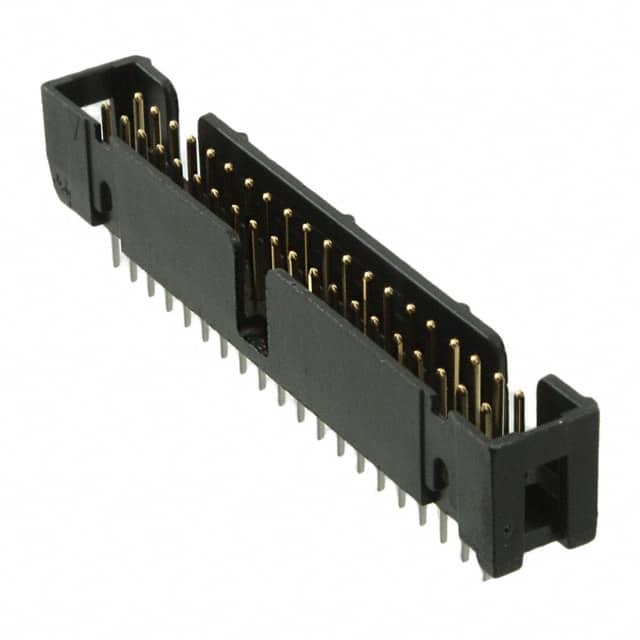

The 3M N2540-6003-RB is a shrouded header connector designed for board-to-board or cable-to-board applications. It features 40 male pin contacts arranged in two rows with a standard 2.54mm (0.100 inch) pitch. The four-wall shroud provides robust mechanical protection and helps guide mating connectors.
Key specifications include a current rating of 1.75A, operating temperature range of -55°C to 105°C, and UL94 V-0 flammability rated insulation material. Contacts are made of copper alloy with a tin finish (30µin thickness), ensuring reliable conductivity and solderability. The through-hole mounting type and solder termination offer secure attachment to PCBs.
The connector includes a keying slot for polarization, preventing misalignment during mating. Typical applications include industrial control systems, computer peripherals, and general-purpose wire-to-board interconnects.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.00 | $4.00 |
| 10+ | $3.44 | $3.44 |
| 25+ | $3.35 | $3.35 |
| 100+ | $3.25 | $3.25 |
| 280+ | $2.69 | $2.69 |
| 560+ | $2.58 | $2.58 |
| 1,120+ | $2.46 | $2.46 |
| 2,520+ | $2.25 | $2.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 40 positions, all loaded (2 rows).
The pitch is 2.54mm (0.100 inch).
The current rating is 1.75A per contact.
Through-hole mounting with solder termination.
-55°C to 105°C.
Yes, it has a 4-wall shrouded design.
Tin with a thickness of 30µin (0.76µm).
