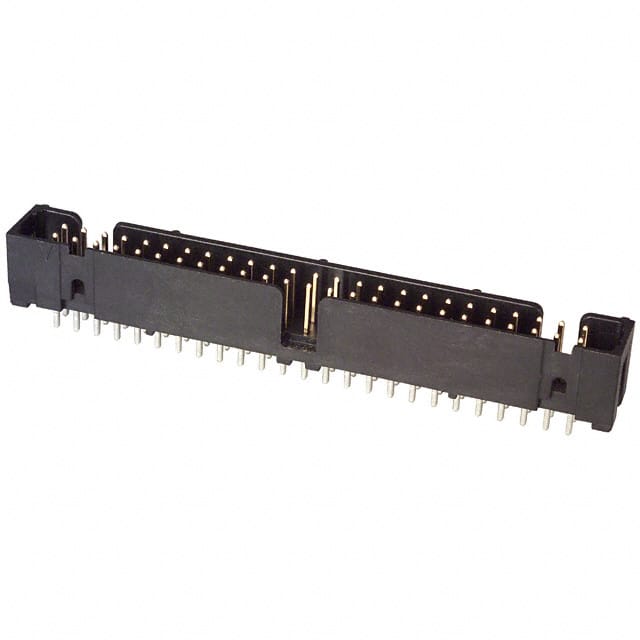

N2540-6002-RB The 3M N2540-6002-RB is a 40-position, 2-row, 2.54mm pitch through-hole header with male pins. It features a shrouded 4-wall design and tin-plated copper alloy contacts.
Mfr Part #:

N2540-6002-RB

Available from 1 distributors
Mfr Name: 3M Electronic Solutions
3M Electronic Solutions
The 3M N2540-6002-RB is a 40-position, 2-row, 2.54mm pitch through-hole header with male pins. It features a shrouded 4-wall design and tin-plated copper alloy contacts.
✓ Total Stock: 67 pcs
$ Price Range: $2.74 - $4.30

N2540-6002-RB Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
67 pcs
On Request
67 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

N2540-6002-RB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Military Grade
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Storage Temperature
Style
Tape & Reel
Termination
View Similar Products (0)

N2540-6002-RB Description

Short technical summary and product information.

The 3M N2540-6002-RB is a 40-position, 2-row header from the N25xx series. It has a 2.54mm pitch and is designed for through-hole mounting with solder termination.



Mechanical features include a shrouded 4-wall design, push-pull fastening, and a keying slot. The insulation is black PCT/Polyester glass-filled material rated UL94 V-0. Contacts are copper alloy with a tin finish of 30µin (0.76µm). Mating contact length is 6.17mm and insulation height is 9.91mm.



Electrically, the header is rated for 1.75A per contact and operates from -55°C to 105°C. It is RoHS3 compliant, REACH unaffected, and has MSL 1. Suitable for board-to-board or cable applications.

N2540-6002-RB Quick Information

Product Type: Header, Male Pins
Canonical Name: 3M N2540-6002-RB Header, Male Pins, 40 Position, 2.54mm Pitch, Through Hole
Subcategory: Male Pins

N2540-6002-RB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

N2540-6002-RB Estimated Pricing

Qty Low High
1+ $4.30 $4.30
10+ $3.79 $3.79
25+ $3.56 $3.56
100+ $3.45 $3.45
280+ $3.02 $3.02
560+ $2.88 $2.88
1,120+ $2.74 $2.74

Estimated market price range - modelled values for guidance only, not live distributor offers.

N2540-6002-RB Features

  • 40 positions in 2 rows with 2.54mm pitch.
  • Shrouded 4-wall design for polarization.
  • Through-hole mounting with solder termination.
  • Tin-plated copper alloy contacts.
  • UL94 V-0 rated insulation material.

N2540-6002-RB Applications

  • Board-to-board connections in electronic assemblies.
  • Cable-to-board interfaces in industrial equipment.
  • Used in test and measurement systems.
  • Suitable for prototyping and production.

N2540-6002-RB FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

40 positions in 2 rows.

What is the pitch?

2.54mm (0.100").

What is the current rating?

1.75A per contact.

What is the mounting type?

Through hole with solder termination.

What is the operating temperature range?

-55°C to 105°C.

What is the contact finish?

Tin, 30µin (0.76µm) thickness.

Is it RoHS compliant?

RoHS3 compliant (unverified, low confidence).
