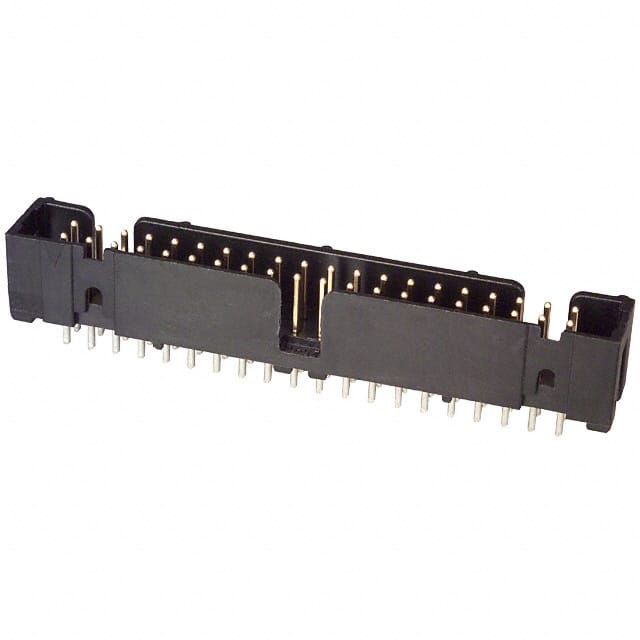

This 3M N2534-6002-RB is a vertical male pin header belonging to the Rectangular Connectors category, specifically within Headers, Male Pins. It offers 34 positions arranged in 2 rows, with a standard pitch of 2.54mm (0.100"). The header is shrouded with a 4-wall design and includes a keying slot for proper alignment. The contacts are made of copper alloy with a tin finish, suitable for solder termination.
The insulation material is Polycyclohexylenedimethylene Terephthalate (PCT) or Polyester, glass-filled, in a black color. It has a current rating of 1.75A and an operating temperature range of -55°C to 105°C. The mounting type is through hole, and it utilizes a push-pull fastening system, making it suitable for board-to-board or cable connections.
Key mechanical specifications include an insulation height of 9.91mm and a contact length of 6.17mm. The contact finish thickness is 0.76µm (30.0µin) of tin. The material flammability rating is UL94 V-0, indicating a high level of safety.
This component is designed for applications requiring reliable connections in a compact form factor. Its robust construction and specific features like keying slots and shrouded design ensure secure and correct mating.
The header has 34 positions.
The pitch is 2.54mm (0.100").
The current rating is 1.75A.
It operates between -55°C and 105°C.
It is mounted using the Through Hole method.
The contacts are made of Copper Alloy with a Tin finish.
The insulation material is Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled.
