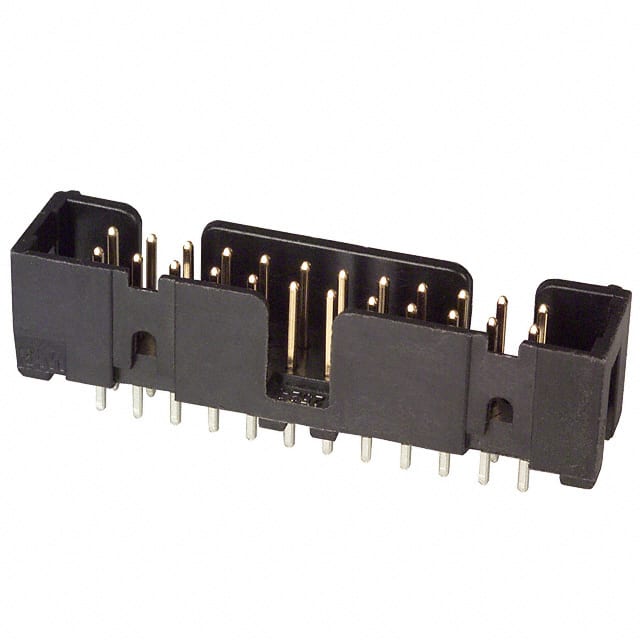

The 3M N2524-6002-RB is a vertical header with 24 male pin positions, designed for board-to-board or cable applications. It features a standard pitch of 2.54mm and a row spacing of 2.54mm, with square contact shapes made from copper alloy and finished with tin.
This header has a current rating of 1.75A and an operating temperature range of -55°C to 105°C. The insulation material is Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled, in black color, with an insulation height of 9.91mm. It is shrouded with 4 walls and includes a keying slot for proper alignment.
Mounting is achieved via through-hole termination with a solder style. The material has a flammability rating of UL94 V-0. Environmental compliance includes RoHS3, MSL 1, and REACH Unaffected, though these are noted as low confidence.
This component is suitable for applications requiring reliable board-to-board connections or cable assemblies where a 24-position, 2.54mm pitch header is needed.
The header has 24 positions.
The pitch is 2.54mm (0.100").
The current rating is 1.75A.
It uses through hole mounting.
The operating temperature range is -55°C to 105°C.
The material flammability rating is UL94 V-0.
