Mfr Part #:

N2520-6V0C-RB-WE

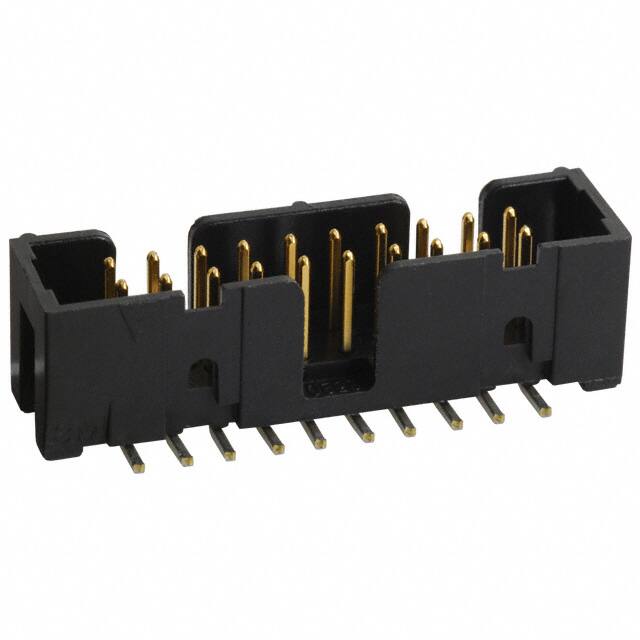

3M N2520-6V0C-RB-WE is a 20-position, 2.54mm pitch surface mount header with male pins. It features a shrouded design, push-pull fastening, and tin-plated contacts.

✓ Total Stock: 21 pcs

$ Price Range: $3.24 - $4.98

N2520-6V0C-RB-WE Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	21 pcs On Request	21 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

N2520-6V0C-RB-WE Description

Short technical summary and product information.

The 3M N2520-6V0C-RB-WE is a 20-position, 2-row, surface mount header connector with a 2.54mm pitch. It is part of the 3M family of rectangular connectors designed for board-to-board or cable applications. The connector features a shrouded 4-wall design with keying slot and pick-and-place feature for automated assembly. Contacts are made of copper alloy with tin finish (30µin thickness) and square shape. The insulation is black glass-filled PCT with a flammability rating of UL94 V-0. Operating temperature range is -55°C to 105°C. Current rating is 1.75A. The connector has a push-pull fastening mechanism and is suitable for surface mount soldering. The contact length is 6.17mm and insulation height is 9.91mm. These specifications make it suitable for various electronic interconnection applications requiring reliable connections in moderate environments.

N2520-6V0C-RB-WE Quick Information

Product Type: Header, Male Pins

Canonical Name: Connector Header, 20 Position, 2.54mm Pitch, Surface Mount, Male Pins

Subcategory: Shrouded Header

N2520-6V0C-RB-WE Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

N2520-6V0C-RB-WE Estimated Pricing

Qty	Low	High
1+	$4.98	$4.98
10+	$4.51	$4.51
25+	$4.42	$4.42
50+	$3.98	$3.98
100+	$3.82	$3.82
200+	$3.63	$3.63
400+	$3.53	$3.53
1,000+	$3.25	$3.25
2,400+	$3.24	$3.24

Estimated market price range - modelled values for guidance only, not live distributor offers.

N2520-6V0C-RB-WE Features

20-position, 2-row, 2.54mm pitch SMT header.
Shrouded 4-wall design with keying slot.
Tin-plated copper alloy contacts, 30µin thickness.
Rated current 1.75A, operating temp -55°C to 105°C.
UL94 V-0 flame rating, pick-and-place compatible.

N2520-6V0C-RB-WE Applications

Used in board-to-board interconnection applications.
Suitable for cable-to-board connections.
Ideal for automated SMT assembly processes.
Applied in moderate environmental conditions.

N2520-6V0C-RB-WE FAQs

7 frequently asked questions generated from this part’s specifications.

What is the number of positions?

20 positions.

What is the pitch?

2.54mm (0.100").

What is the current rating?

1.75A.

What is the mounting type?

Surface Mount.

What is the operating temperature range?

-55°C to 105°C.

Is the connector shrouded?

Yes, it is shrouded with 4 walls.

What is the contact finish?

Tin with 30µin (0.76µm) thickness.

Category	Headers, Male Pins
Manufacturer Name	3M Electronic Solutions
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	30.0µin (0.76µm)
Contact Length	6.17mm (0.243")
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75A
Fastening Type	Push-Pull
Features	Keying Slot, Pick and Place
Insulation Color	Black
Insulation Height	9.91mm (0.390")
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Lead Spacing	2.54 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 105°C
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Board or Cable
Tape & Reel	Yes
Termination	Solder
Termination Style	Solder
