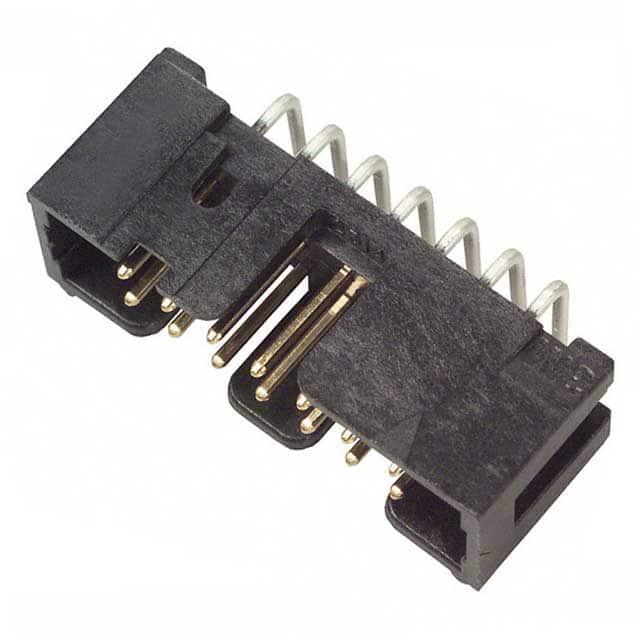

The 3M N2514-5002-RB is a 14-position rectangular header designed for board-to-board or cable connections. It features a 2.54mm pitch and row spacing, with all 14 positions loaded. The contacts are male square pins made of copper alloy with a tin finish (30µin thickness). The header is shrouded with a 4-wall design, providing protection and alignment, and includes a keying slot for correct orientation.
The mounting type is through-hole, right angle, with solder termination. The insulation material is black polycyclohexylenedimethylene terephthalate (PCT) and polyester, glass filled, rated UL94 V-0 for flammability. The operating temperature range is -55°C to 105°C, and the current rating is 1.75A per contact. The fastening type is push-pull, making it suitable for applications requiring easy mating and unmating.
This header is ideal for use in industrial equipment, consumer electronics, and other applications where a reliable right-angle interconnect is needed. The 2.54mm pitch is standard for many prototyping and production designs. The shrouded design helps prevent accidental shorting and provides mechanical strength.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.72 | $2.72 |
| 10+ | $2.35 | $2.35 |
| 25+ | $2.22 | $2.22 |
| 100+ | $2.00 | $2.00 |
| 500+ | $1.76 | $1.76 |
| 1,000+ | $1.65 | $1.65 |
| 2,464+ | $1.60 | $1.60 |
| 5,544+ | $1.47 | $1.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions arranged in 2 rows.
2.54mm (0.100") pitch and row spacing.
1.75A per contact.
Through hole, right angle with solder termination.
-55°C to 105°C.
Yes, it includes a keying slot for orientation.
UL94 V-0.
