Mfr Part #:

N2510-6V0C-RB-WD

Available from 3 distributors

Mfr Name: 3M Electronic Solutions

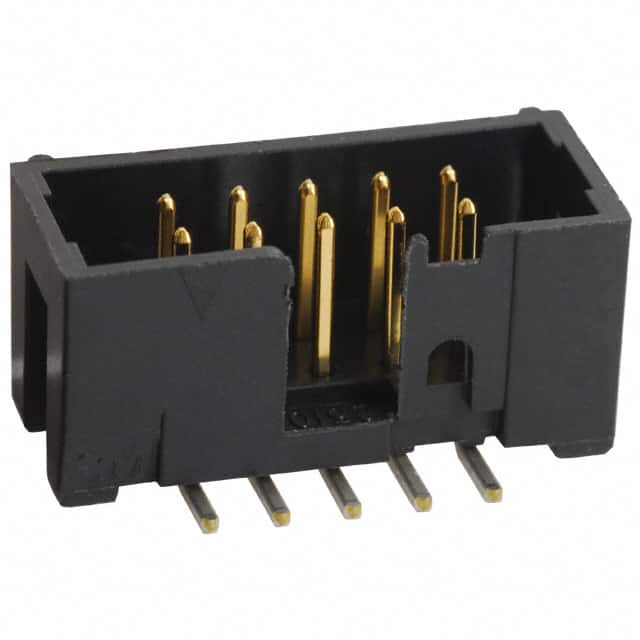

10-position, 2.54mm pitch surface mount header from 3M. Shrouded with tin-plated square pins, rated for 1.75A.

✓ Total Stock: 236 pcs

$ Price Range: $2.95 - $4.75

N2510-6V0C-RB-WD Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	127 pcs On Request	127 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Husky International Electronic ✓ Non-Authorised Inventory information	61 pcs On Request	61 pcs	On Request	1	On Request	On Request	N/A	On Request	On Request
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	48 pcs On Request	48 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

N2510-6V0C-RB-WD Description

Short technical summary and product information.

The 3M N2510-6V0C-RB-WD is a 10-position, 2-row surface mount header with a 2.54mm pitch. It features a shrouded 4-wall design with square male pins made of copper alloy with tin plating (30µin thickness). The insulator is black glass-filled PCT with UL94 V-0 flammability rating.

This connector is suitable for board-to-board or cable applications. It includes a keying slot and pick-and-place feature for automated assembly. The operating temperature range is -55°C to 105°C, and it is rated for 1.75A per contact.

The header has a push-pull fastening type and a contact length of 6.17mm. It is RoHS3 compliant and has an MSL of 1 (unlimited). The part is available in tape and reel packaging.

N2510-6V0C-RB-WD Quick Information

Product Type: Header, Male Pins

Series: N2510

Canonical Name: 3M N2510-6V0C-RB-WD Header, Male Pins, 10 Position, 2.54mm Pitch, Surface Mount

Subcategory: Shrouded Header

N2510-6V0C-RB-WD Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

N2510-6V0C-RB-WD Estimated Pricing

Qty	Low	High
1+	$4.75	$4.75
10+	$4.28	$4.28
50+	$4.26	$4.26
100+	$3.46	$3.46
200+	$3.29	$3.29
400+	$3.20	$3.20
1,000+	$2.95	$2.95

Estimated market price range - modelled values for guidance only, not live distributor offers.

N2510-6V0C-RB-WD Features

10-position, 2-row surface mount header.
2.54mm pitch with shrouded 4-wall design.
Tin-plated copper alloy contacts rated 1.75A.
Operating temperature range -55°C to 105°C.
UL94 V-0 rated glass-filled PCT insulator.

N2510-6V0C-RB-WD Applications

Used in board-to-board interconnections.
Suitable for cable-to-board applications.
Ideal for automated pick-and-place assembly.
Common in industrial and consumer electronics.

N2510-6V0C-RB-WD FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the N2510-6V0C-RB-WD have?

10 positions.

What is the pitch of this header?

2.54mm (0.100").

What is the current rating?

1.75A per contact.

What is the mounting type?

Surface mount (SMD).

What is the operating temperature range?

-55°C to 105°C.

What is the contact finish?

Tin with 30µin thickness.

Is this header shrouded?

Yes, it has a shrouded 4-wall design.

Category	Headers, Male Pins
Manufacturer Name	3M Electronic Solutions
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	30.0µin (0.76µm)
Contact Length	6.17mm (0.243")
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75A
Fastening Type	Push-Pull
Features	Keying Slot, Pick and Place
Insulation Color	Black
Insulation Height	9.91mm (0.390")
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Lead Spacing	2.54 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 105°C
Pitch	2.54mm (0.100")
Row Spacing	2.54mm (0.100")
Shrouding	Shrouded - 4 Wall
Style	Board to Board or Cable
Tape & Reel	Yes
Termination	Solder
