| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

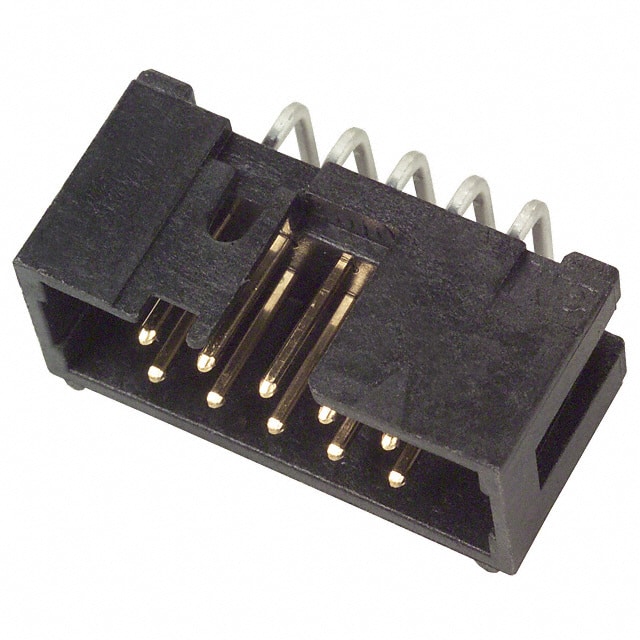

The 3M N2510-5002-RB is a 10-position, 2-row rectangular header connector designed for board-to-board or cable applications. It features a 2.54mm (0.100") pitch and row spacing, with a right-angle through-hole mounting style for solder termination. The connector is fully shrouded with a 4-wall design, providing robust protection for the male pins. The insulation is made of black glass-filled PCT/polyester with a UL94 V-0 flammability rating. Contacts are copper alloy with a tin finish (30µin thickness) and square shape. The connector includes a keying slot for polarization and uses a push-pull fastening mechanism. Electrical rating is 1.75A per contact, and the operating temperature range is -55°C to 105°C. This header is suitable for a variety of industrial and commercial electronic assemblies requiring reliable, polarized connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.57 | $2.57 |
| 10+ | $2.29 | $2.29 |
| 25+ | $2.15 | $2.15 |
| 100+ | $1.90 | $1.90 |
| 250+ | $1.81 | $1.81 |
| 500+ | $1.70 | $1.70 |
| 784+ | $1.62 | $1.62 |
| 5,488+ | $1.61 | $1.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 10 positions arranged in 2 rows.
The pitch is 2.54mm (0.100").
The current rating is 1.75A per contact.
Through-hole, right-angle mounting with solder termination.
-55°C to 105°C.
Tin with a thickness of 30µin (0.76µm).
Yes, it has a shrouded 4-wall design.
