| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Lead Style | |
| Mounting Type | |
| Number of Turns | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Resistance | |
| Resistive Material | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance |

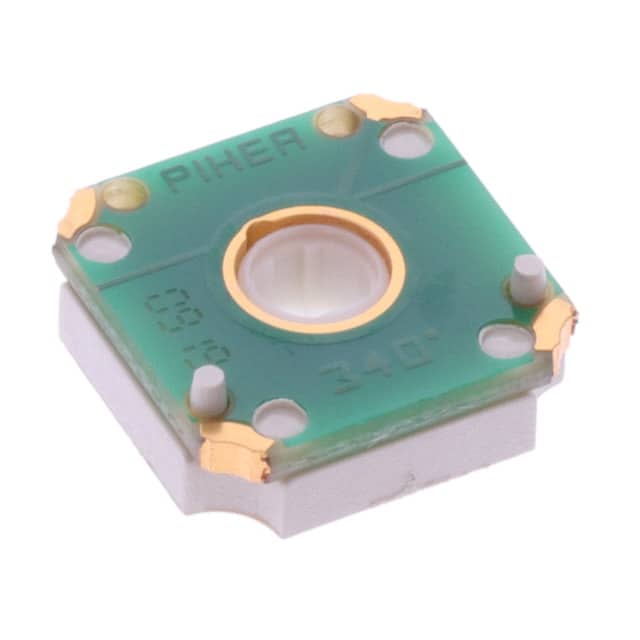

The Amphenol Piher N-15 series low-profile rotary position sensor/potentiometer, part number N15TS-103A3030, is designed for appliance and automotive control applications. It features a 10 kΩ resistance with a ±30% tolerance and a power rating of 0.15W at 50°C. The potentiometer offers a 340° electrical angle and a 360° mechanical rotation, with a low profile of 4.4mm and a 15mm footprint.
This sensor is suitable for surface mounting with a J Lead termination style. It operates within a wide temperature range of -40°C to +120°C and has a mechanical life of up to 2,000,000 cycles. The N-15 series also provides IP54 protection, making it robust for various environments. It is ideal for applications such as timer and program selection, temperature controls, HVAC control, seat position feedback, and mirror actuator feedback.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 10 kΩ.
The tolerance is ±30%.
The nominal power rating is 0.15W at 50°C.
The operating temperature range is -40°C to +120°C.
It is a surface mount device with J Lead termination.
The mechanical life is up to 2,000,000 cycles.
Yes, it has IP54 protection.
