| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

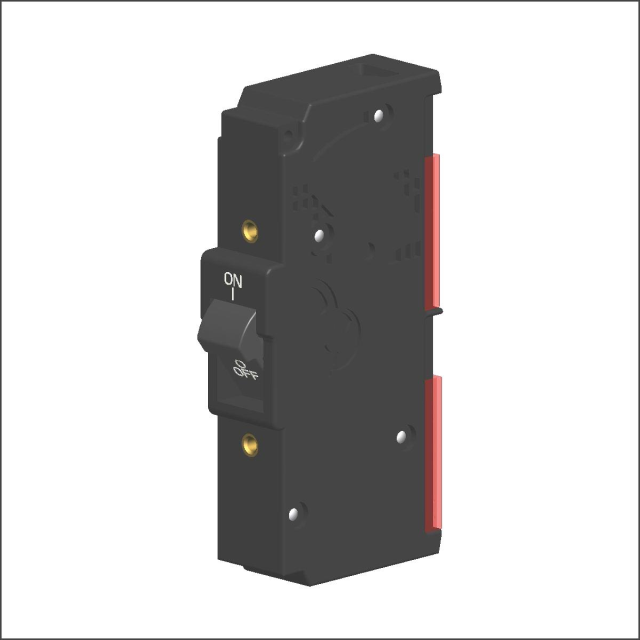

The Littelfuse Inc. N11-B1-24-616-122-D3 is a hydraulic-magnetic circuit breaker designed for demanding OEM environments. This single-pole breaker offers a current rating of 16A and a voltage rating of 240VAC, with an interrupting capacity of 10,000 amps.
It features a panel mount design with a screw termination and a rocker-style actuator. The breaker is TUV Certified to IEC/EN 60947-2 and UL 489 Listed, ensuring reliable circuit protection. The N-Series breaker provides a magnetic trip mechanism with a hydraulic delay suitable for various applications.
Key specifications include a 16A current rating, 240VAC voltage, and a 1-pole configuration. The mounting type is panel mount, and the termination is screw-based. Illumination is not provided, and the actuator type is a single color low profile rocker.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 16A.
The voltage rating is 240VAC.
It has 1 pole.
It is a Magnetic (Hydraulic Delay) breaker.
The mounting type is Panel Mount.
The interrupting capacity is 10,000A.
The termination style is Screw.
