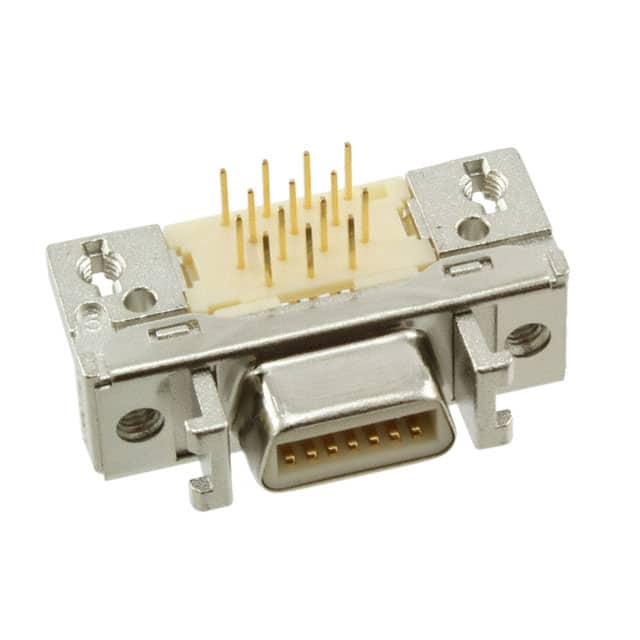

The 3M N10214-5212PC is a 14-position receptacle from the Mini D Ribbon (MDR) 102 series, designed for boardmount applications. It features a right-angle orientation with through-hole solder termination and panel mount capability. The connector is shielded for EMI protection and includes outer shroud contacts for reliable mating.
Electrical specifications include a current rating of 1 A, withstanding voltage of 500 VRMS for 1 minute, and insulation resistance greater than 5 × 10⁸ Ω at 500 VDC. The operating temperature range is -55°C to +105°C, with a process rating of 260°C per J-STD-020C. The insulator is made of glass reinforced polyester (PCT) with UL 94V-0 flammability rating.
Mechanical features include a zinc alloy body with nickel plating, copper alloy contacts with gold plating (minimum 30 μin in wiping area), and a ground lock for reliable PCB retention. The flange feature uses housing/shell (M2.6) screws. The connector is suitable for industrial I/O, data communication, and parallel interface applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.70 | $9.70 |
| 10+ | $8.72 | $8.72 |
| 20+ | $8.17 | $8.17 |
| 50+ | $7.78 | $7.78 |
| 100+ | $7.40 | $7.40 |
| 200+ | $6.85 | $6.85 |
| 500+ | $6.42 | $6.42 |
| 1,000+ | $6.16 | $6.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions arranged in 2 rows.
1 A nominal.
500 VRMS for 1 minute (withstanding voltage).
Panel mount, through hole, right angle with solder termination.
-55°C to +105°C.
UL 94V-0.
Gold plating with minimum 30 microinches (0.76 µm) in the wiping area, over nickel underplate.
