| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Absolute Maximum Rating Voltage | |
| Cold (Storage) | |
| Dry Heat (Storage) | |
| Dry Heat, Power Supplied Test | |
| Fan Type | |
| Flow Rate (Minimum @ 18 Vdc) | |
| Flow Rate (Minimum @ Back Pressure:0.05 kPa) | |
| Nozzle Height | |
| Operating Temperature | |
| Operating Voltage | |
| Power (Watts) | |
| Resonant Frequency | |
| Shock | |
| Static Pressure | |
| Static Pressure (Minimum @ 19.5 Vdc) | |
| Thickness | |
| Vibration | |
| Voltage | |
| Weight | |
| Width |

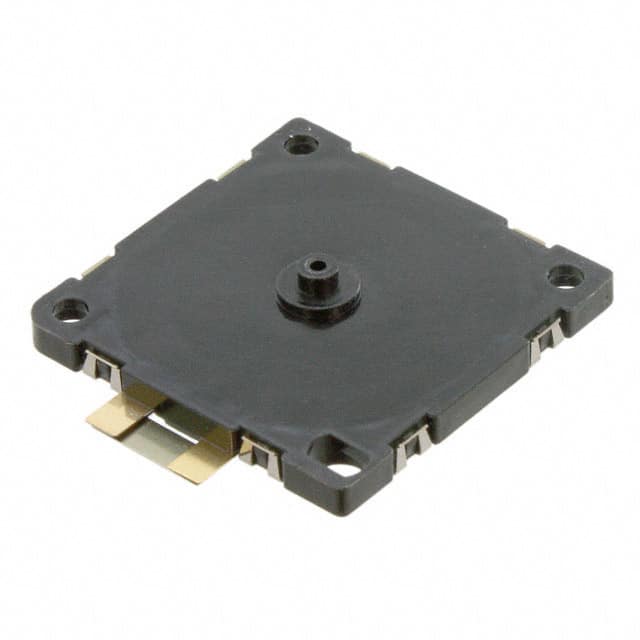

The Murata MZB1001T02 is a microblower air pump, characterized by its compact size of 20 x 20 mm and lightweight design. It is engineered for high-speed and high-pressure air blowing with less pulsation and quick response.
Key electrical specifications include an operating voltage range of 10 to 20 Vp-p and a resonant frequency between 24.0 to 27.0 kHz. The air pump delivers a minimum flow rate of 0.70 L/min at 0.05kPa back pressure and a static pressure of at least 1.42 kPa. The operating temperature range is from 0 to 70°C.
Mechanical dimensions are precise, with a thickness of 1.85mm and a nozzle height of 1.6mm. The device weighs approximately 1.4g. Reliability testing includes vibration resistance up to 10G and shock resistance up to 30G.
This microblower is suitable for applications requiring directed airflow in a small form factor. Its design focuses on efficient air movement and reliable operation within specified environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 10 to 20 Vp-p.
The operating temperature range is 0 to 70 °C.
The flow rate is a minimum of 0.70 L/min at 0.05kPa back pressure.
The static pressure is a minimum of 1.42 kPa.
The dimensions are 20 x 20 mm with a thickness of 1.85mm and a nozzle height of 1.6mm.
The weight is approximately 1.4g.
