| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,539 pcs
|
3539 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Acceleration Range | |
| Automotive Grade | |
| Axis | |
| Bandwidth | |
| Features | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Output Type | |
| Sensitivity (LSB | |
| Supplier Device Package | |
| Type | |
| Voltage |

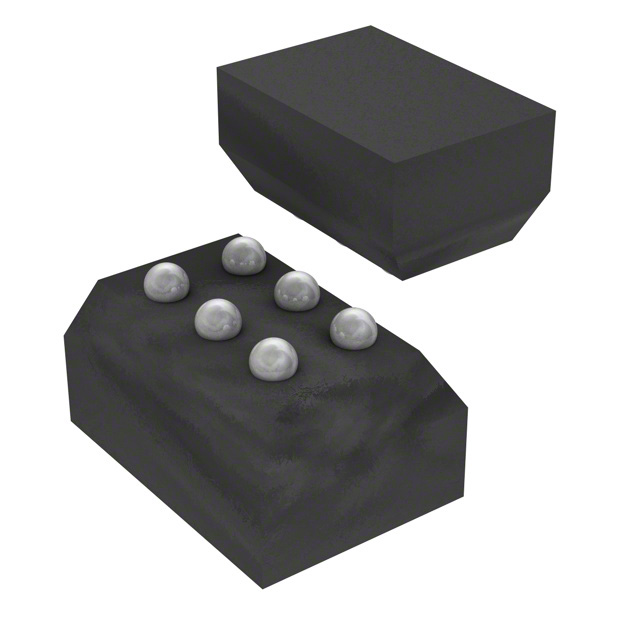

The Memsic Inc. MXC4005XC is a digital, three-axis accelerometer designed for a wide range of applications. It utilizes MEMS technology with no moving parts, ensuring high reliability and repeatability.
Key specifications include selectable acceleration ranges of ±2g, ±4g, and ±8g, with a 12-bit signal output for X, Y, and Z axes. The device also incorporates an 8-bit temperature output, operating from -50°C to +100°C. Its I2C interface supports FAST mode up to 400 KHz, and it operates on a single supply voltage from 1.62V to 3.6V.
This accelerometer is housed in a compact 6-WLP (Wafer Level Package) with dimensions of 1.18mm x 1.70mm x 0.85mm, making it suitable for space-constrained designs. It features surface mount technology for easy integration into printed circuit boards. The device also offers features like 6-position orientation detection and shake detection with programmable thresholds.
Applications for the MXC4005XC include information appliances such as cell phones and tablets, consumer electronics like LCD projectors and pedometers, gaming devices, and household safety products.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.43 | $11.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 1.62V to 3.6V.
The MXC4005XC is available in a 6-WLP (1.18x1.7) package and a 6-TFBGA, WLBGA package.
The operating temperature range is -40°C to 85°C.
Yes, the MXC4005XC is RoHS3 Compliant.
The MXC4005XC offers selectable acceleration ranges of ±2g, ±4g, and ±8g.
The MXC4005XC uses an I2C interface.
Yes, the MXC4005XC includes an 8-bit temperature output.
