| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Architecture | |
| Automotive Grade | |
| Data Interface | |
| Differential Output | |
| INL | |
| Industrial Grade | |
| Lead Spacing | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Bits | |
| Number of D | |
| Operating Temperature | |
| Output Type | |
| Reference Type | |
| Settling Time | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |

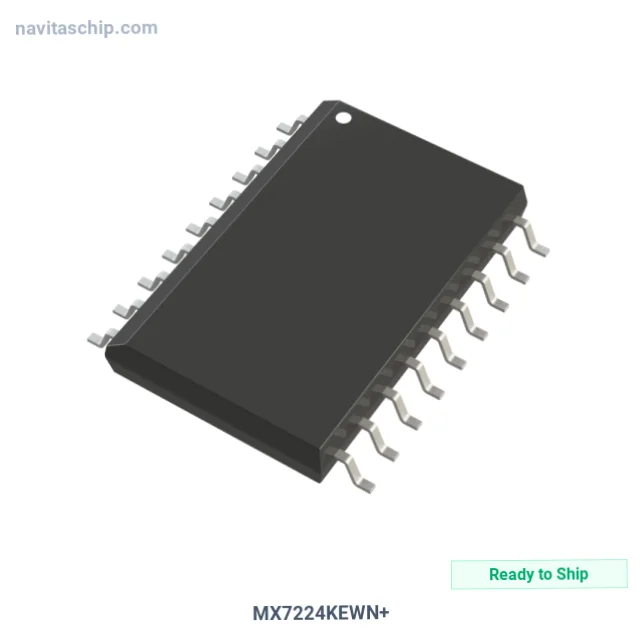

The MX7224KEWN+ is an 8-bit Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc./Maxim Integrated. This component is designed for applications requiring precise voltage output.
Key technical specifications include an 8-bit resolution, a voltage-buffered output type, and a parallel data interface. It operates within a digital supply voltage range of 14.25V to 15.75V and an analog supply voltage range of 11.4V to 16.5V, with a -5V option also noted. The device features an R-2R architecture and a settling time of 8µs. The integral and differential nonlinearity are both within ±1 LSB (Max).
This DAC is suitable for operation in temperatures ranging from 0°C to 70°C. It is housed in a compact 18-SOIC package, designed for surface mounting. The reference type is external, and it does not feature a differential output. The part number MX7224KEWN+ is also available under the distributor part number MX7224KEWN+-ND.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.70 | $8.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MX7224KEWN+ has an 8-bit resolution.
The MX7224KEWN+ provides a voltage-buffered output.
The operating temperature range for the MX7224KEWN+ is 0°C to 70°C.
The MX7224KEWN+ is supplied in an 18-SOIC package.
The MX7224KEWN+ is designed for surface mounting.
The settling time for the MX7224KEWN+ is 8µs.
