| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19,012 pcs
|
19012 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

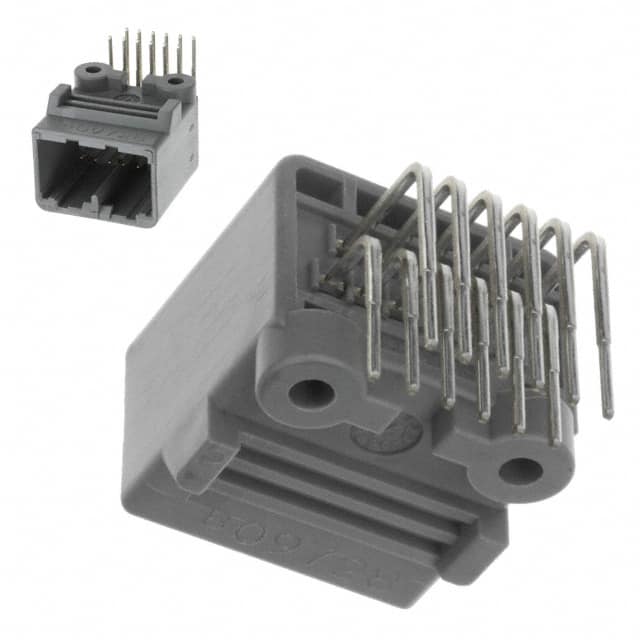

The JAE Electronics MX34012NF1 is a male pin header designed for board-to-cable or board-to-wire applications. It features 12 positions arranged in 2 rows, with a pitch of 2.20mm (0.087").
This header has a right-angle, through-hole mounting style and a solder termination. The contact material is brass with a tin finish, and the insulation is made of glass-filled Syndiotactic Polystyrene (SPS) in a gray color. It is rated for a current of 3A and operates within a temperature range of -40°C to 85°C.
The MX34012NF1 is shrouded with 4 walls for protection and includes a mounting flange for secure installation. It also features a locking ramp for secure mating. The header is supplied in bulk packaging with a standard package quantity of 1728 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MX34012NF1 header has 12 positions.
The pitch of the MX34012NF1 header is 2.20mm.
The current rating for the MX34012NF1 header is 3A.
The MX34012NF1 header uses a through-hole, right-angle mounting style.
The operating temperature range for the MX34012NF1 header is -40°C to 85°C.
