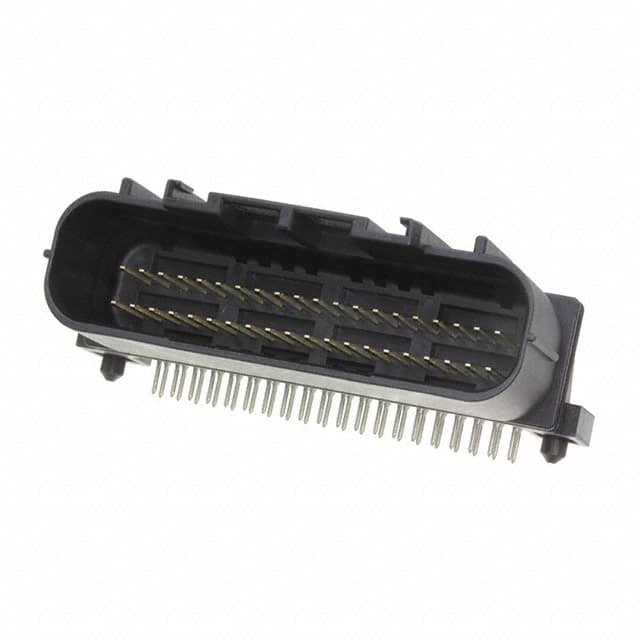

The JAE Electronics MX23A40NF1 is a right-angle header designed for board-to-cable/wire applications. It offers 40 positions with a 2.50mm pitch and a 4.40mm row spacing, providing a high-density connection solution.
This header features brass contacts with a tin finish and a square contact shape. It has an insulation height of 18.30mm and is constructed from PBT, Glass Filled material. The operating temperature range is -40°C to 125°C, and it has a current rating of 3A.
Key features include a latch holder for secure fastening and a shrouded design with 4 walls for enhanced protection. The connector type is a header, suitable for applications requiring reliable connections. It is RoHS3 Compliant and has an MSL of 1 Unlimited.
Typical applications include consumer electronics, automotive electronics, industrial automation, and networking equipment where compact and robust connections are essential.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch of the MX23A40NF1 connector is 2.50mm (0.098").
The MX23A40NF1 header has 40 positions.
The current rating for the MX23A40NF1 connector is 3A.
The operating temperature range for the MX23A40NF1 is -40°C to 125°C.
The MX23A40NF1 uses through-hole, right-angle mounting.
Typical applications include consumer electronics, automotive electronics, industrial automation, and networking equipment.
