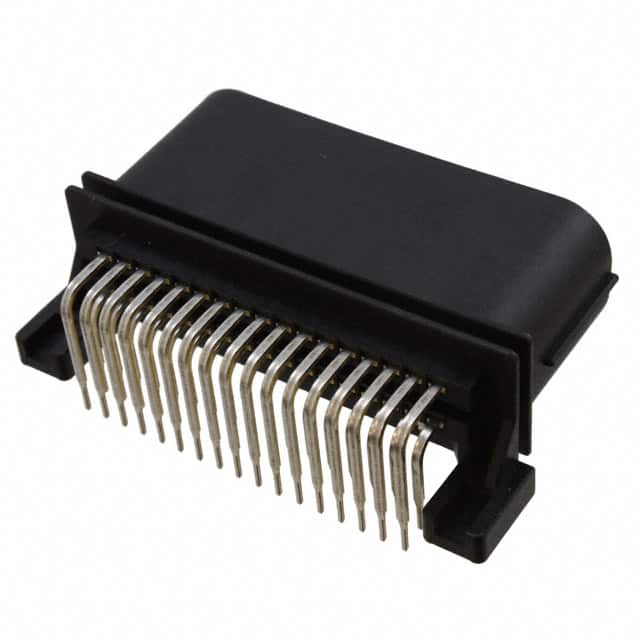

The JAE Electronics MX23A34NF1 is a 34-position, 2-row, 2.5mm pitch shrouded header designed for board-to-cable/wire applications. It features a through hole right angle mounting style with solder termination, making it suitable for compact PCB layouts where a low-profile right angle connection is required.
The connector is fully shrouded with a 4-wall design and includes a latch holder fastening system for secure mating. The insulation is made of glass-filled PBT in black, and the square brass contacts are finished with tin. A board guide feature aids in alignment during assembly.
Rated for 3A continuous current, the MX23A34NF1 operates over a wide temperature range of -40°C to 125°C. It is waterproof with ingress protection, adding robustness for demanding environments. All 34 positions are loaded, and the row spacing is 4.40mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.22 | $9.22 |
| 10+ | $8.23 | $8.23 |
| 25+ | $8.07 | $8.07 |
| 50+ | $8.00 | $8.00 |
| 120+ | $7.13 | $7.13 |
| 240+ | $7.12 | $7.12 |
| 600+ | $6.36 | $6.36 |
| 1,080+ | $6.10 | $6.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.50mm (0.098 inches).
It has 34 positions arranged in 2 rows.
The current rating is 3A.
Through hole, right angle.
-40°C to 125°C.
Yes, it is a shrouded header with a 4-wall design.
Tin.
