MX23A26NF1 JAE Electronics MX23A26NF1 is a 26-position, 2.50mm pitch shrouded pin header with through-hole right-angle mounting, rated for 3A and temperatures from -40°C to 125°C.
Mfr Part #:

MX23A26NF1

Available from 1 distributors
Mfr Name: JAE Electronics
JAE Electronics
JAE Electronics MX23A26NF1 is a 26-position, 2.50mm pitch shrouded pin header with through-hole right-angle mounting, rated for 3A and temperatures from -40°C to 125°C.
✓ Total Stock: 8 pcs
$ Price Range: $5.40 - $7.76

MX23A26NF1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MX23A26NF1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Ingress Protection
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

MX23A26NF1 Description

Short technical summary and product information.

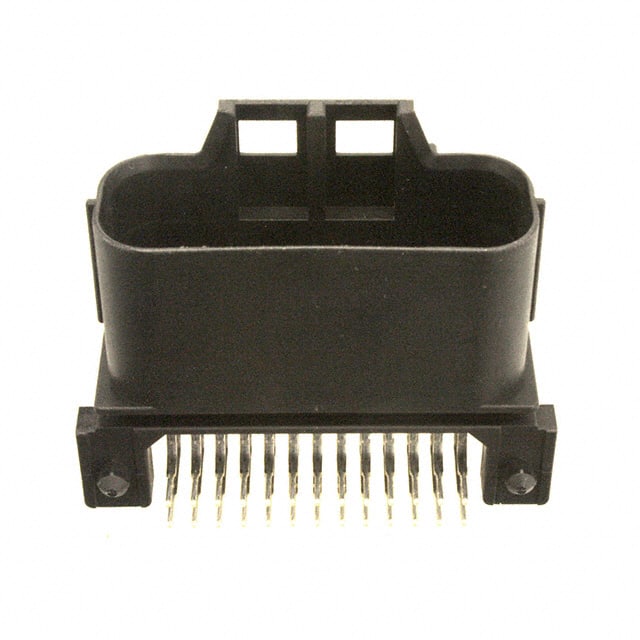

The MX23A26NF1 from JAE Electronics is a 26-position shrouded pin header designed for board-to-cable wire connections. It features a 2.50mm pitch and dual-row configuration with a 4-wall shrouded housing and latch holder for secure mating.



This header uses through-hole right-angle mounting with solder termination. The contacts are square brass pins with tin finish, rated for 3A continuous current. The insulation is black glass-filled polybutylene terephthalate (PBT) with a height of 18.30mm. An integrated board guide aids alignment during assembly.



The MX23A26NF1 operates over a temperature range of -40°C to 125°C and is rated as waterproof. Its robust design makes it suitable for applications requiring reliable connections in challenging environments.

MX23A26NF1 Quick Information

Product Type: Header, Male Pins
Series: MX23A
Canonical Name: JAE Electronics MX23A26NF1 Header, Male Pins, 26 Position, 2.50mm Pitch, Through Hole, Right Angle
Subcategory: Rectangular Connectors - Headers, Male Pins

MX23A26NF1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MX23A26NF1 Estimated Pricing

Qty Low High
1+ $7.76 $7.76
10+ $7.31 $7.31
25+ $6.78 $6.78
50+ $6.62 $6.62
100+ $6.01 $6.01
250+ $5.90 $5.90
480+ $5.48 $5.48
1,120+ $5.40 $5.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

MX23A26NF1 Features

  • 26 positions with 2.50mm pitch.
  • Right-angle through-hole mounting style.
  • Shrouded 4-wall design with latch holder.
  • Rated for 3A continuous current.
  • Operating temperature -40°C to 125°C.

MX23A26NF1 Applications

  • Board-to-cable wire connections.
  • Automotive or industrial control modules.
  • Applications requiring waterproof connectivity.

MX23A26NF1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the MX23A26NF1?

The pitch is 2.50mm (0.098").

How many positions does the MX23A26NF1 have?

It has 26 positions arranged in 2 rows.

What is the current rating of the MX23A26NF1?

The current rating is 3A.

What is the mounting type of the MX23A26NF1?

Through Hole, Right Angle.

What is the operating temperature range of the MX23A26NF1?

-40°C to 125°C.

Is the MX23A26NF1 shrouded?

Yes, it has a shrouded 4-wall design.

What is the contact finish on the MX23A26NF1?

Tin.
