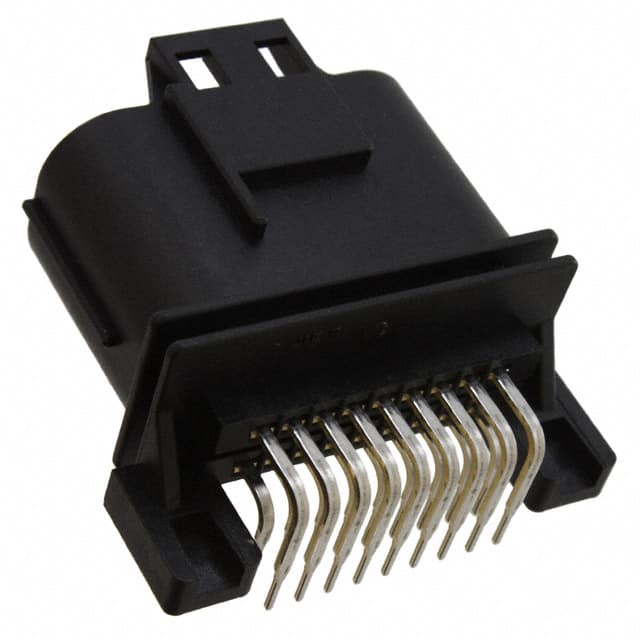

The MX23A18NF1 from JAE Electronics is a high-quality rectangular connector header designed for board-to-cable/wire applications. It features 18 positions arranged in 2 rows with a 2.5mm pitch, making it suitable for compact designs requiring reliable signal or power connections. The header is shrouded with a 4-wall design and includes a latch holder for secure mating, as well as a board guide feature for accurate alignment.
Electrical specifications include a current rating of 3A per contact, with contacts made of brass and finished with tin for good conductivity and corrosion resistance. The insulation is made of glass-filled PBT in black, providing durability and a high insulation height of 18.30mm. The right-angle mounting style and through-hole solder termination simplify PCB assembly and are ideal for space-constrained layouts.
Environmental resilience is enhanced by an IP rating of waterproof, allowing use in harsh or outdoor conditions. The operating temperature range spans -40°C to 125°C, covering most industrial and automotive environments. The contact length is 3.10mm, and the row spacing is 4.40mm, ensuring consistent electrical performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.00 | $7.00 |
| 10+ | $6.20 | $6.20 |
| 100+ | $5.10 | $5.10 |
| 480+ | $4.62 | $4.62 |
| 1,120+ | $4.45 | $4.45 |
| 2,560+ | $4.44 | $4.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MX23A18NF1 has 18 positions (all loaded) in 2 rows.
The pitch is 2.50mm (0.098 inches).
The current rating is 3A per contact.
The mounting type is Through Hole, Right Angle with solder termination.
Yes, it has an ingress protection rating of Waterproof.
The operating temperature range is -40°C to 125°C.
Contacts are made of brass with a tin finish.
