| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
363 pcs
|
363 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Marking | |
| Actuator Type | |
| Capacitance | |
| Circuit | |
| Color | |
| Current | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Relative Humidity | |
| Storage Temperature | |
| Switch Function | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating |

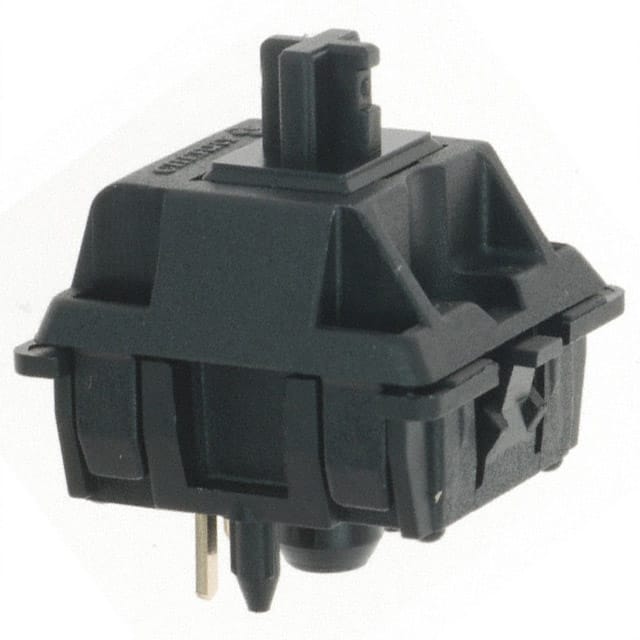

The Cherry Americas LLC MX1A-11NW is a SPST-NO Keyswitch designed for various applications. It operates with a voltage rating of 12 VDC and a current rating of 10mA AC/DC.
This keyswitch features a Through Hole mounting type and a PC Pin termination style. The operating temperature range is from -10°C to 70°C, with a storage temperature range of -40°C to 70°C. The electrical life is rated for 50,000,000 cycles under specific conditions.
Constructed with Thermoplastic, UL-rated plastics and AuAg 10 contacts, it meets a UL94HB flammability rating. The keyswitch is suitable for wave soldering up to 5 seconds at 500°F. It is RoHS3 Compliant, REACH Unaffected, and has an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MX1A-11NW keyswitch has a minimum voltage rating of 2 VDC and a maximum rating of 12 VAC/DC.
The MX1A-11NW keyswitch has a minimum current rating of 10 µA DC and a maximum rating of 10mA AC/DC.
The operating temperature range for the MX1A-11NW keyswitch is -10°C to 70°C.
The MX1A-11NW keyswitch is RoHS3 Compliant.
