| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,672 pcs
|
1672 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Plating | |
| Contact Resistance | |
| Current Rating | |
| Depth | |
| Failure Rate | |
| Gender | |
| Height | |
| Housing Material | |
| Mounting Type | |
| Number of Contacts | |
| Number of Rows | |
| SVHC Present | |
| Termination Style | |
| Voltage Rating | |
| Width |

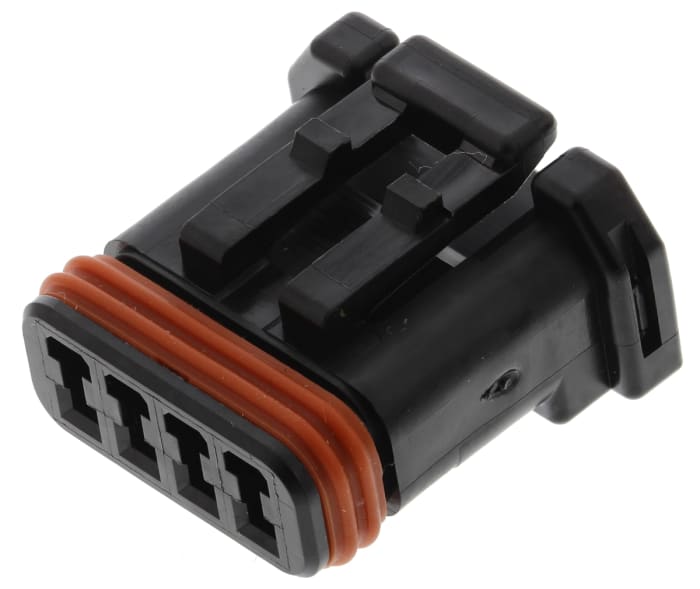

The JAE MX19004S51 is a female automotive connector from the MX19 series, designed for reliable performance in demanding automotive applications. This connector offers 4 contacts and utilizes a crimp termination style for secure wire connections.
With a current rating of 5A and a voltage rating of 200V AC, the MX19004S51 is suitable for various automotive electrical systems. It operates within a temperature range of -40°C to +105°C and has a contact resistance of 10mΩ maximum. The housing is constructed from Polybutylene Terephthalate and features a black color.
Designed for wire-to-wire connections, this connector has a compact form factor with dimensions of 8.85mm in height, 14.1mm in depth, and 14mm in width. Its robust design ensures tolerance to harsh environments, contributing to an improved harness assembly process. The series is known for its mechanical lock to prevent incomplete mating and a two-plate spring mechanism for enhanced contact reliability.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
5A.
200V AC.
Cable mount.
-40°C to +105°C.
Tin.
Polybutylene Terephthalate (PBT).
