| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Weight | |
| Width |

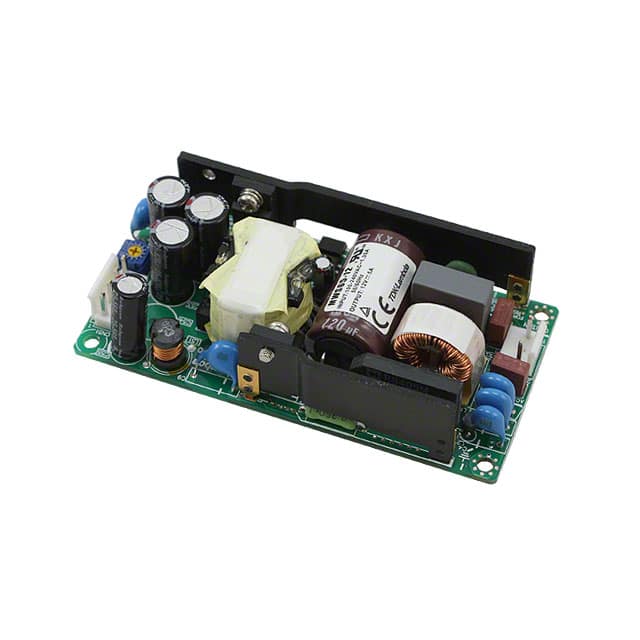

The TDK Corporation MWS65-12 is an open-frame, chassis mount AC-DC power supply designed for versatility and reliability. It provides a 12V output with a maximum current of 5A, delivering up to 60W of power.
Key electrical specifications include a wide AC input voltage range of 85-265VAC and a DC input range of 120-370VDC. The unit boasts high efficiency, up to 89%, and a low off-load power draw of less than 0.3W at 230VAC. It features adjustable output, load regulation of 0.8%, and line regulation of 0.4%. The operating temperature range is -20°C to +70°C.
Designed with medical and ITE applications in mind, the MWS65-12 holds relevant certifications and offers BF rating. Its compact 2" x 4" x 1" profile and industry-standard footprint make integration straightforward. The power supply is built for robust performance, with features like overcurrent and overvoltage protection.
This model is suitable for various industrial and medical equipment where stable and efficient power conversion is critical. Its robust construction and comprehensive safety certifications ensure dependable operation in demanding environments.
The output voltage is 12V.
The output power is 60W.
The AC input voltage range is 85-265 VAC, and the DC input voltage range is 120-370 VDC.
The operating temperature range is -20°C to +70°C.
It is certified to UL60950-1, CSA60950-1, EN60950-1, EN50178, UL60601-1, and EN60601-1.
It is an open-frame, chassis-mount converter with a 2 x 4 x 1 inch footprint.
