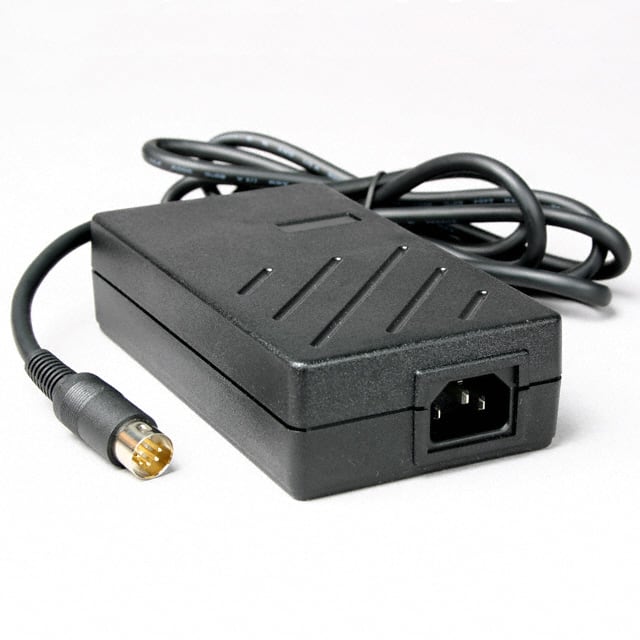

The Inventus Power MWP9012-D8-NC-BK is a 90 Watt AC/DC desktop adapter designed for medical applications. It features a wide range AC input from 90 to 264 VAC and provides a fully regulated 12V output at 7.5A.
Key electrical specifications include a typical efficiency of 90%, line regulation of +/- 1%, and load regulation of +/- 5%. The adapter includes built-in over-voltage, over-current, and short-circuit protection. It operates within a temperature range of 0°C to 40°C.
The unit utilizes an IEC 60320 inlet plug for input and a DIN-8 pin circular connector for output, with a 6 ft output cable. It meets FCC Class B and CISPR 11 Class B EMI/EMC standards and carries UR/cUR UL2601-1 and CE certifications for safety.
This adapter is suitable for international use and comes with a 5-year warranty. Its dimensions are 149.9mm L x 84.6mm W x 38.1mm H.
90-264 VAC.
0°C to 40°C.
UR/cUR UL2601-1 and CE marked EN60601-1-2:2001.
12V DC at 7.5A, 90W.
Typical 90%.
Over voltage, over current, and short circuit protection (pulsing mode, auto recovery).
Desktop Class I adapter with DIN-8 pin circular connector.
