| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Relative Humidity | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

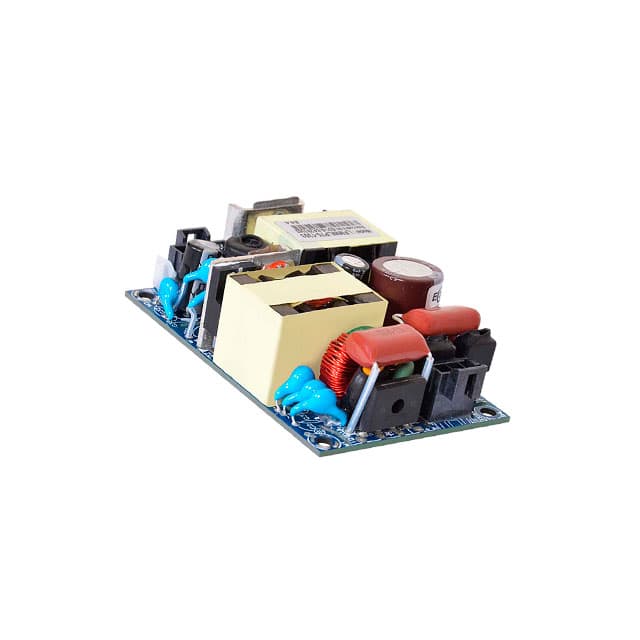

The EOS Power MWLP75-1001-II is an open-frame AC/DC converter delivering 75W of power with a 12V output. Designed for medical applications, it operates with a universal input voltage range of 85-264 VAC and features natural convection cooling.
Key electrical specifications include 90% efficiency at 12V, a hold-up time greater than 16ms, and power factor exceeding 0.95. The converter offers adjustable output voltage with +/-3% adjustability, +/-0.5% line regulation, and +/-1% load regulation. It is protected against over-current (Typ 110%), over-voltage (110-140%), and short circuits (hiccup mode).
With an operating temperature range of -40°C to 70°C, this unit is suitable for demanding environments. It meets EN60601 3rd Edition and IEC60601-1-2 standards, providing 4000 VAC isolation between input and output, and offers 2xMOPP protection. The dimensions are 76.2mm x 50.8mm x 25.4mm, and it is designed for chassis mount installation.
The MWLP75-1001-II has a nominal output voltage of 12V.
The maximum output current for the 12V output is 6.25A.
The MWLP75-1001-II has a power rating of 75W.
The input voltage range is 85-264 VAC.
The operating temperature range is -40°C to 70°C.
The dimensions are 76.2mm x 50.8mm x 25.4mm.
It is approved by CB, CE, cUL, NEMKO, and UL.
