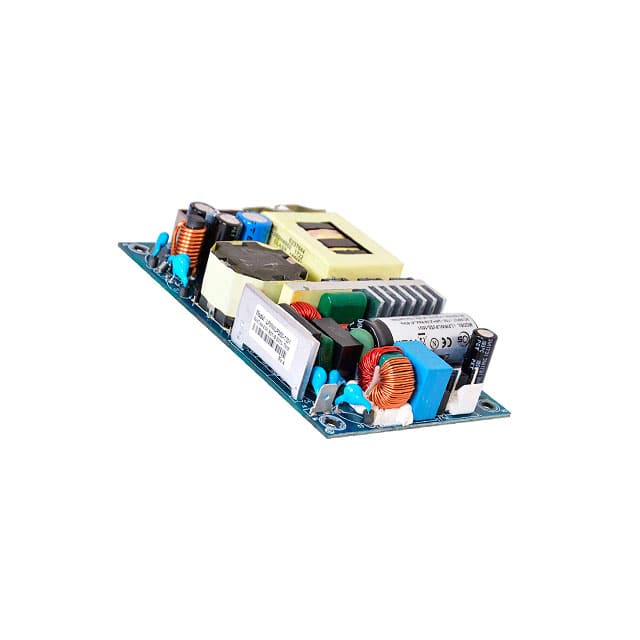

The EOS Power MWLP350-1004-II is an open-frame AC/DC converter designed for medical applications. It provides up to 200W of power with natural convection cooling and up to 350W with forced air cooling.
Key electrical specifications include a universal input voltage range of 90-264 VAC, high efficiency up to 94%, and a 48V output voltage. The converter offers comprehensive protection features including over-current, over-voltage, and short-circuit protection with auto-recovery.
With an operating temperature range of -40°C to 70°C, this power supply is suitable for demanding environments. It meets IEC60601-1-2 standards for medical electrical equipment and carries BF safety approvals. The dimensions are 5.00" L x 3.00" W x 1.00" H, and it is designed for chassis mounting.
Additional features include Power Factor Correction (PFC), adjustable output voltage, and a thermal shut-down feature. The MTBF is rated at 2.56 million hours.
The input voltage range is 90-264 VAC or 390 VDC, universal.
The output is 48V at 4.17A.
The operating temperature range is -40°C to 70°C.
The mounting type is chassis mount.
It includes over current protection (>110%), over voltage protection (110-140%), and short circuit protection, all with hiccup mode and auto recovery.
Efficiency is up to 94% at 48V/58V output, 93% at 24V/30V, and 92% at 12V/15V.
Yes, it has medical safety approvals (BF) and meets IEC60601-1-2 (4th Edition).
