| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Frequency | |
| Input Voltage | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Relative Humidity | |
| Storage Temperature | |
| Type | |
| Voltage |

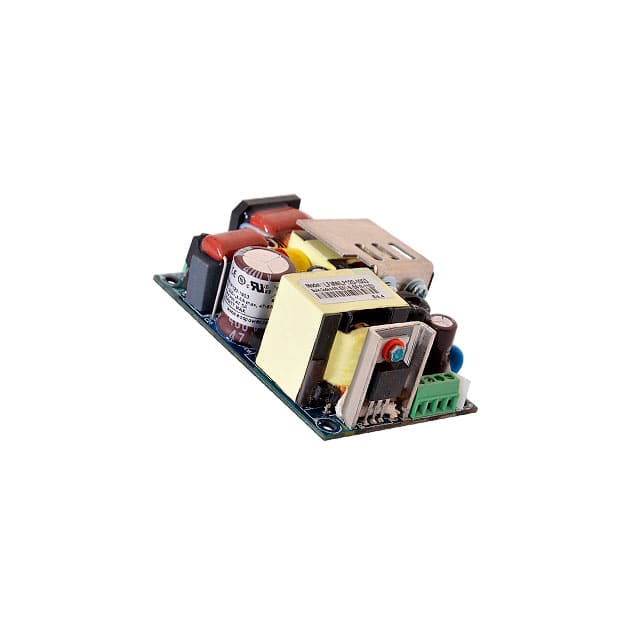

The EOS Power MWLP120-1004-II is an open-frame AC/DC converter designed for medical applications. It provides a 48V output and delivers up to 100W of power under convection cooling, or 120W with forced air.
This converter features a universal input voltage range of 85-264 VAC and an input frequency of 47-63 Hz. It boasts high efficiency, reaching up to 93% at 48V/58V outputs. Key electrical specifications include adjustable output voltage with +/-3% tolerance, line regulation of +/-0.5%, and load regulation of +/-1%. It also includes over-current, over-voltage, and short-circuit protection.
The unit operates within a temperature range of -40°C to 70°C and has an MTBF of over 3 million hours. Its compact dimensions (76.2mm x 50.8mm x 30.0mm) and chassis mount type make it suitable for integration into various systems.
Compliance includes EN60601 3rd Edition and IEC60601-1-2 (4th Edition), with isolation voltages of 4000 VAC (input to output), 1500 VAC (input to ground), and 1500 VAC (output to ground). It offers 2xMOPP protection.
The output voltage is 48V.
The output current is 2.08A.
The maximum output power is 100W under convection cooling, and 120W with forced air.
The input voltage range is 85-264 VAC.
The operating temperature range is -40°C to 70°C.
The dimensions are 76.2mm x 50.8mm x 30.0mm.
Yes, it is approved to EN60601 3rd Edition and meets standard IEC60601-1-2 (4th Edition), with 2xMOPP protection.
