| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Relative Humidity | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

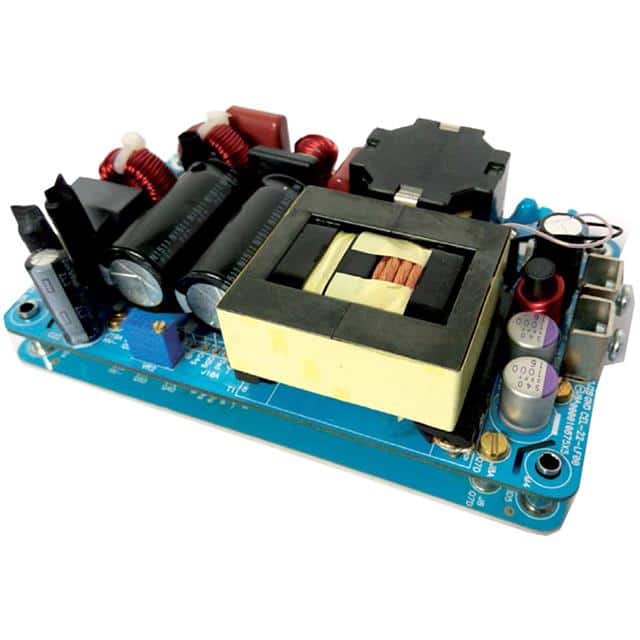

The EOS Power MWLC550-1030 is a 250W open frame AC/DC converter designed for medical applications. It provides a 30V output voltage with a nominal current of 8.33A. The converter operates with universal input voltage from 90-264 VAC and features a power factor exceeding 0.95 at full load.
Key electrical specifications include line regulation of +/-0.5% and load regulation of +/-1%. It offers over-current, over-voltage, and short-circuit protection with hiccup mode and auto-recovery. The operating temperature range is -40°C to 70°C, with a thermal shut-down feature.
This unit is chassis mounted and has dimensions of 5.00" L x 3.00" W x 1.50" H. It meets EN60601-1 3rd Edition and EN60601-1-2 4th Edition standards, with Medical (BF) Safety Approvals. The MTBF is rated at over 3 million hours.
Additional features include adjustable output, power factor correction (PFC), and a fan output of 12V / 0.5A. Isolation voltage is rated at 4000 VAC for medical applications.
The input voltage range is 90-264 VAC.
The output voltage is 30V and the output current is 8.33A.
The operating temperature range is -40°C to 70°C with derating.
The dimensions are 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm).
The MWLC550-1030 is approved to CB, CE, cUL, NEMKO, and UL standards.
The input-to-output isolation voltage is 4000 VAC.
