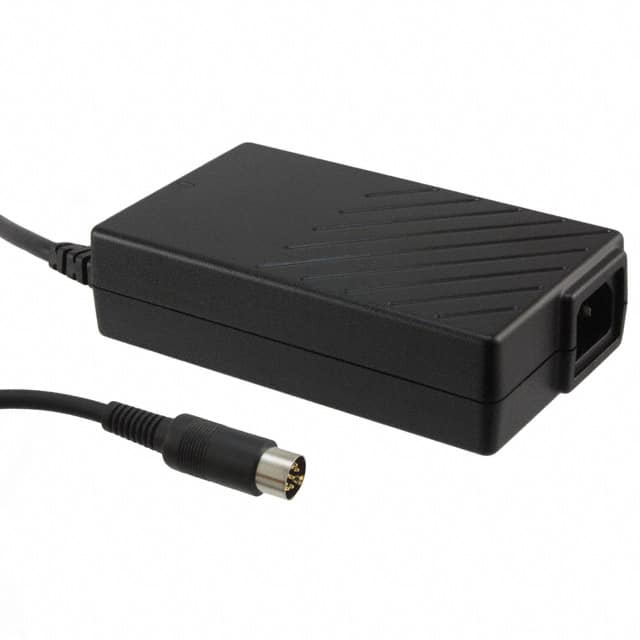

The Inventus Power MWB100018A-12A is a 101 Watt AC/DC desktop power supply designed for various applications, including medical use. It provides a stable 18V output at 5.6A, with a total regulation of ±5% and a peak current capability of 6.7A.
This power supply operates across a wide input voltage range of 85-264 VAC and features high efficiency, typically 89% at 115VAC and 90.6% at 230VAC. It includes essential protections such as over-voltage, over-current, and short-circuit protection with auto-restart.
The unit is designed with a compact form factor, measuring 132mm x 78mm x 34mm, and utilizes natural convection for cooling. It features an IEC 320-C18 input connector and a DIN 8-pin output connector, with a standard cord length of 72 inches (1.83m).
Compliance includes EISA, CEC, and medical approval to EN60601-1 Class II, along with emissions and immunity standards like FCC Class B and EN61000 series. The MTBF is demonstrated at a minimum of 200,000 hours.
The MWB100018A-12A provides an 18V output voltage at 5.6A.
This power supply has a power rating of 101W.
The MWB100018A-12A accepts an input voltage range of 85-264 VAC.
The operating temperature range is 0°C to 60°C.
Yes, it is approved to EN60601-1 Class II standards.
It features an IEC 320-C18 input connector and a DIN 8-pin output connector.
