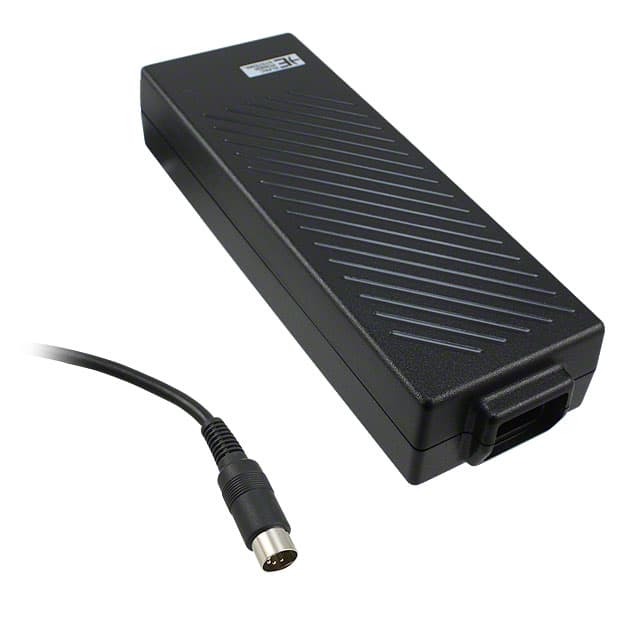

The Inventus Power MWA220048A-11A is a 220 Watt Class I medical desktop power supply designed for demanding applications. It provides a stable 48V output with a current rating of 4.6A, delivering a total of 221W of power.
This power supply meets Level V efficiency standards and features a power factor greater than 0.97. It operates within a wide input voltage range of 85-264VAC and includes protections such as over-voltage, over-current, and short-circuit with auto-restart.
The unit is designed for international use and features an IEC 320-C14 input connector and a 5-pin DIN output connector. Its compact dimensions are 208.0mm x 73.1mm x 39.5mm, with a weight of 0.95 Kg. The operating temperature range is 0-60°C.
Compliance includes EN60601-1 Class I 3.1 Edition for medical applications and IEC/EN 60601-1-2 4th edition for EMC safety. It also meets FCC Class B and CISPR11 Class B emissions standards.
The MWA220048A-11A provides a regulated 48.0V DC output.
It uses an IEC 320-C14 input connector and a 5-pin DIN output connector.
The adapter operates reliably between 0°C and 60°C.
It reaches up to 92.5% efficiency at 230VAC input.
Yes, it features over-voltage, over-current, and short-circuit protection.
The minimum mean time between failures is 200,000 hours.
