| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Form Factor | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Relative Humidity | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Weight | |
| Width |

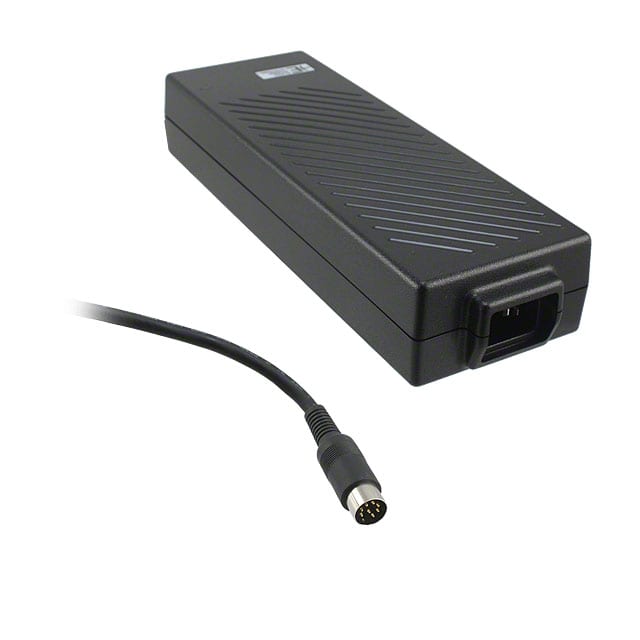

The Inventus Power MWA220024A-12A is a 221 Watt Class I medical desktop power supply. It operates with an input voltage range of 85-264 VAC and provides a stable 24V output at 9.2A, with a peak current of 9.5A. This power supply meets Level V efficiency standards and features high power density.
Designed for demanding applications, it boasts medical approvals including EN60601-1 Class I 3.1 Edition and EMC safety compliance with IEC/EN 60601-1-2 4th edition. The operating temperature range is 0-60°C, with natural convection cooling. Protection features include over-voltage, over-current, and short-circuit protection.
The unit has a compact desktop form factor with dimensions of 208.0mm x 73.0mm x 39.0mm. It utilizes an IEC 320-C14 input connector and a DIN 8-pin output connector. The power supply is rated for international use and comes with a 5-year limited warranty.
The output voltage is 24V.
The output current is 9.2A.
The maximum power output is 221W.
The operating temperature range is 0°C to 60°C.
Yes, it has Medical Approval - EN60601-1 Class I 3.1 Edition.
It meets Level V efficiency standards.
