| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Relative Humidity | |
| SVHC Present | |
| Storage Temperature | |
| Voltage | |
| Weight | |
| Width |

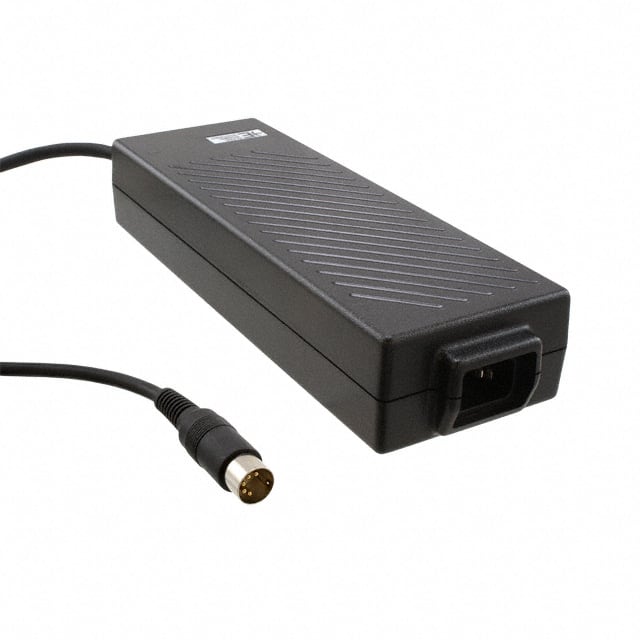

The Inventus Power MWA180048A-11A is a 180 Watt medical desktop power supply designed for international use. It operates with an input voltage range of 85-264VAC and provides a stable 48V output at 3.75A.
This power supply meets Level V efficiency standards and boasts high power density. It is certified for medical applications with approvals including EN60601-1 Class I 3.1 Edition and EMC safety according to IEC/EN 60601-1-2 4th edition. The unit features a Class I form factor and an IEC 320-C14 input connector, with the AC cord sold separately.
Key features include low leakage current, over-voltage, over-current, and short-circuit protection. The operating temperature range is 0-60°C, and it is rated for a lifetime expectation of over 5 years. It also includes an LED indicator and is IPX1 rated.
The output voltage is 48V.
The maximum output current is 3.75A.
The power rating is 180W.
The operating temperature range is 0°C to 60°C.
Yes, it is RoHS3 Compliant.
