| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Relative Humidity | |
| Storage Temperature | |
| Voltage | |
| Weight | |
| Width |

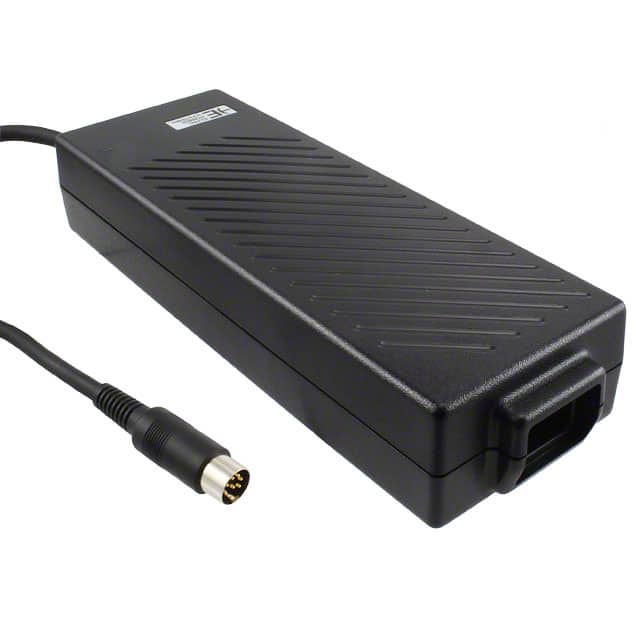

The Inventus Power MWA180024A-12A is a 180 Watt Class I medical desktop power supply designed for reliable operation in demanding applications. It provides a stable 24V output at 7.5A, with a peak current capability of 9.0A.
This power supply meets stringent medical and EMC safety standards, including EN60601-1 Class I 3.1 Edition and IEC/EN 60601-1-2 4th edition. It features high efficiency rated at Level V, with typical efficiency of 90% at 115VAC. The unit operates across a wide input voltage range of 85-264VAC and offers protections such as over-voltage, over-current, and short-circuit.
Designed for ease of integration, the MWA180024A-12A has a compact form factor with dimensions of 208.0mm x 73.0mm x 39.0mm. It utilizes natural convection cooling and has an IPX1 rating. The input connector is IEC 320-C14, and the output connector is a DIN 8-pin type. The AC cord is sold separately.
With a lifetime expectation exceeding 5 years and a 5-year limited warranty, this power supply is built for durability and long-term performance in medical equipment and other critical systems.
The output voltage is 24V.
The maximum output current is 7.5A.
The power rating is 180W.
The operating temperature range is 0°C to 60°C.
Yes, it meets EN60601-1 Class I 3.1 Edition and IEC/EN 60601-1-2 4th edition standards.
The efficiency is rated at Level V.
It comes with a 5-year limited warranty.
