| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Relative Humidity | |
| SVHC Present | |
| Storage Temperature | |
| Voltage | |
| Weight | |
| Width |

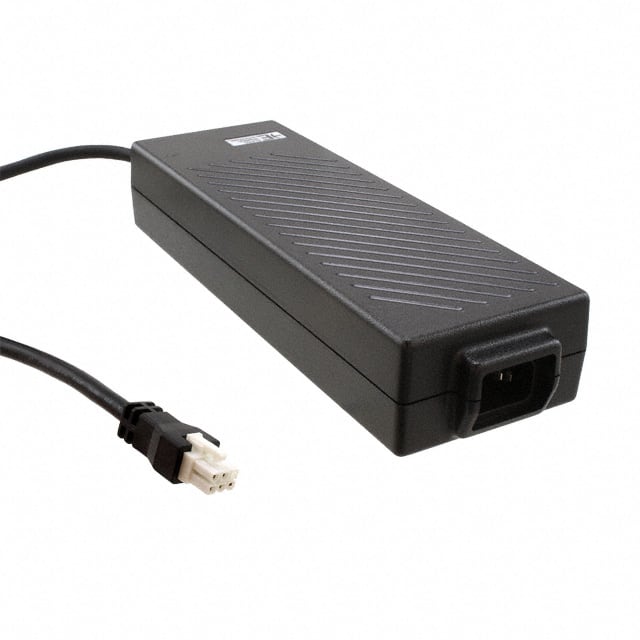

The Inventus Power MWA180018A-13A is a 180 Watt Class I medical desktop power supply designed for reliable operation in demanding environments. It features an 18V output voltage and a 10A output current, with a peak current capability of 12.0A.
This power supply operates across a wide input voltage range of 85-264VAC and meets Level V efficiency standards, ensuring high performance with low no-load power consumption (<0.5W). It is certified to EN60601-1 Class I 3.1 Edition for medical applications and complies with EMC safety standards IEC/EN 60601-1-2 4th edition.
Key features include a compact desktop form factor (208.0mm x 73.0mm x 39.0mm), an operating temperature range of 0°C to 60°C, and protections such as over-voltage, over-temperature, over-current, and short-circuit with auto-restart.
It utilizes an IEC 320-C14 input connector and a 6-position rectangular output connector. The unit comes with a 5-year limited warranty and has an MTBF of over 200,000 hours.
The input voltage range is 85–264 VAC (nominal 100–240 VAC).
The operating temperature range is 0°C to 60°C, with linear derating above 40°C to 50% load at 60°C.
The form factor is Desktop (Class I).
The output voltage is 18V and the output current is 10A, providing 180W.
It is approved to EN60601-1 Class I (3.1 Edition) and meets IEC/EN 60601-1-2 (4th Edition) EMC requirements.
Yes, it has short circuit protection that shuts down and auto-restarts in hiccup mode.
The adapter comes with a 5-year limited warranty.
