| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Weight | |
| Width |

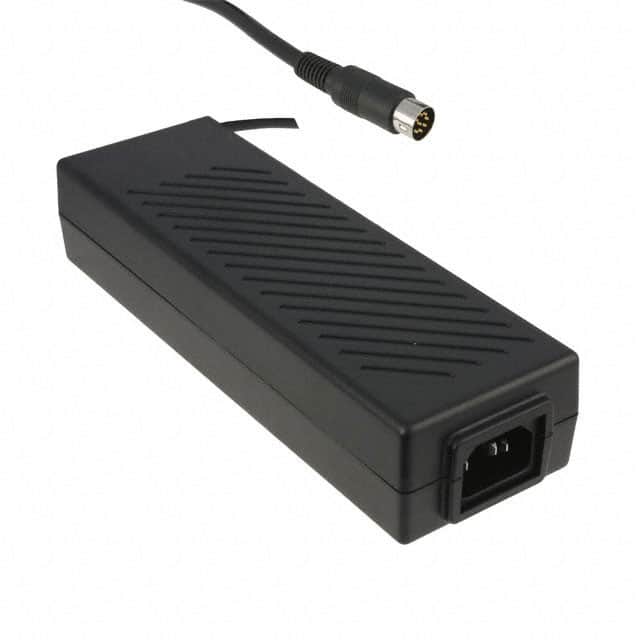

The Inventus Power MWA150015A-12A is a 150 Watt Class I medical desktop power supply designed for reliable operation in demanding environments. It features a 15V output voltage and a 10A output current, with a peak current capability of 12.0A.
This power supply operates with an input voltage range of 85-264VAC and meets Level V efficiency standards, ensuring energy conservation. Key electrical specifications include a power factor greater than 0.97, low zero load power consumption below 0.5W, and tight total regulation of ±5%. Protection features include over-voltage, over-temperature, over-current, and short-circuit protection with auto-restart.
Designed for medical applications, it holds approvals such as EN60601-1 Class I 3.1 Edition and IEC/EN 60601-1-2 4th edition for EMC safety. The unit operates within a temperature range of 0°C to 60°C and is cooled by natural convection. Its dimensions are 192.0mm x 62.2mm x 38.7mm, and it utilizes a DIN 8-pin output connector and an IEC 320-C14 input connector, with the AC cord sold separately.
With a lifetime expectation of over 5 years and a 5-year limited warranty, the MWA150015A-12A offers a robust and dependable power solution for medical equipment and other sensitive applications requiring high efficiency and safety compliance.
The input voltage range is 100-240 VAC nominal (85-264 VAC absolute) at 50-60 Hz.
The output is 15V DC at 10A continuous, with a peak current capability of 12A for up to 500ms.
The adapter operates from 0°C to 60°C, with full load up to 40°C and linear derating to 50% load at 60°C.
Yes, it is approved to EN60601-1 Class I 3.1 Edition and complies with IEC/EN60601-1-2 4th edition EMC requirements.
It meets Level V efficiency with typical efficiency of 90% at 115VAC.
Over voltage protection (110-135%), over current protection (120-180%), and short circuit protection with hiccup mode auto-restart.
It is a desktop Class I adapter with an IEC 320-C14 input connector and an 8-pin DIN output connector, using a detachable power cord (sold separately).
