| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Relative Humidity | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Weight |

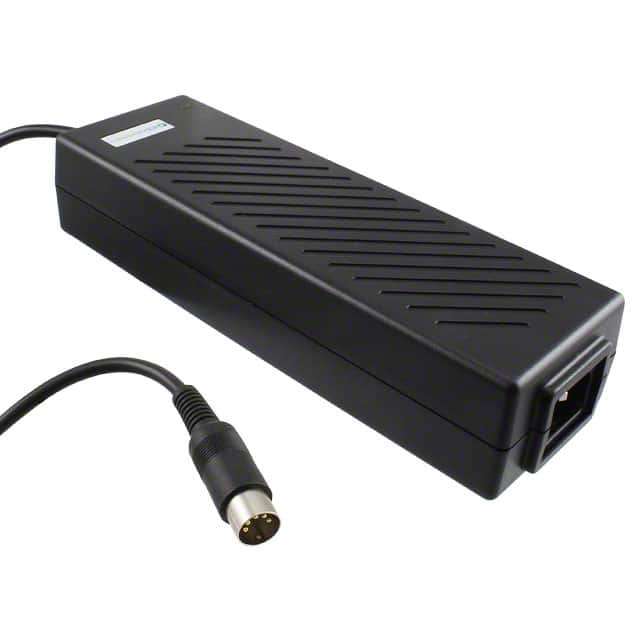

The Inventus Power MWA120048A-11A is a 120 Watt Class I medical desktop power supply. It operates with an input voltage range of 85-264VAC and provides a stable 48V output current of 2.5A.
This power supply meets stringent medical and EMC safety standards, including EN60601-1 Class I 3.1 Edition and IEC/EN 60601-1-2 4th edition. It boasts high efficiency, meeting Level V requirements, and features low leakage current. The operating temperature range is 0-60°C, with a lifetime expectation exceeding 5 years and a 5-year limited warranty.
Designed for international use, it features an IEC 320-C14 input connector and a 5-pin DIN output connector. The dimensions are 192.0mm x 62.2mm x 38.7mm, offering a high power density of 4.32W/in³.
Key features include over-voltage, over-temperature, and over-current protection, along with short-circuit protection with auto-restart. It is certified by TUV to various standards including ANSI/AAMI ES60601-1 and CAN/CSA-C22.2 No.60601-1.
The output voltage is 48V.
The output current is 2.5A.
The power rating is 120W.
The operating temperature range is 0°C to 60°C.
Yes, it meets EN60601-1 Class I 3.1 Edition and IEC/EN 60601-1-2 4th edition.
It meets Level V efficiency standards.
It uses an IEC 320-C14 input connector.
