| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Relative Humidity | |
| Storage Temperature | |
| Voltage | |
| Weight |

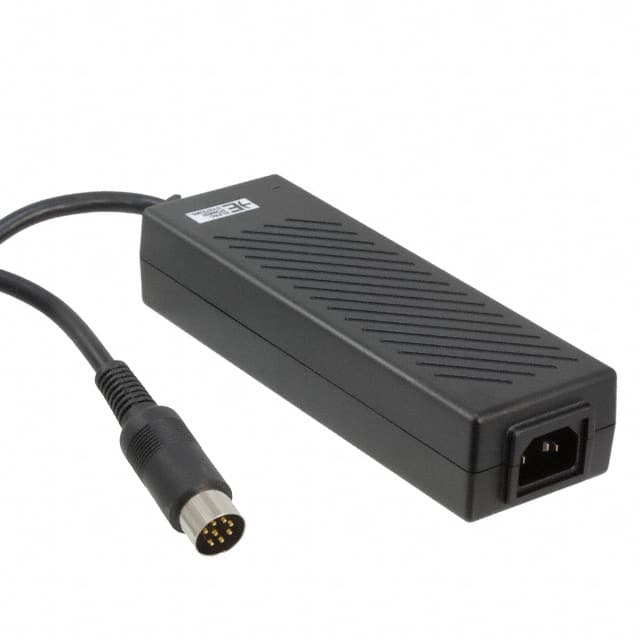

The Inventus Power MWA120012A-12A is a 120 Watt Class I medical desktop power supply. It operates with an input voltage range of 85-264VAC and delivers a stable 12V output at 10A.
This power supply features high efficiency, meeting Level V standards, and is designed for demanding applications with a power density of 4.32W/in³. It includes protections such as over-voltage, over-current, and short-circuit with auto-restart.
Compliance includes medical approvals like EN60601-1 Class I 3.1 Edition and EMC safety standards IEC/EN 60601-1-2 4th edition. The unit is certified by TUV to cTUVus, ANSI/AAMI ES60601-1, and CAN/CSA-C22.2 No.60601-1. It also carries CE marking for LVD and EMC.
With a compact size of 7.56" L x 2.45" W x 1.52" H, it utilizes natural convection cooling and has an input connector of IEC 320-C14. The output is provided via an 8-pin DIN connector.
The output voltage is 12V.
The maximum output current is 10.0A.
The power rating is 120W.
The operating temperature range is 0–60°C.
It has medical approval EN60601-1 Class I 3.1 Edition and EMC safety IEC/EN 60601-1-2 4th edition, with certifications including CB, CE, and cTUVus.
