| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

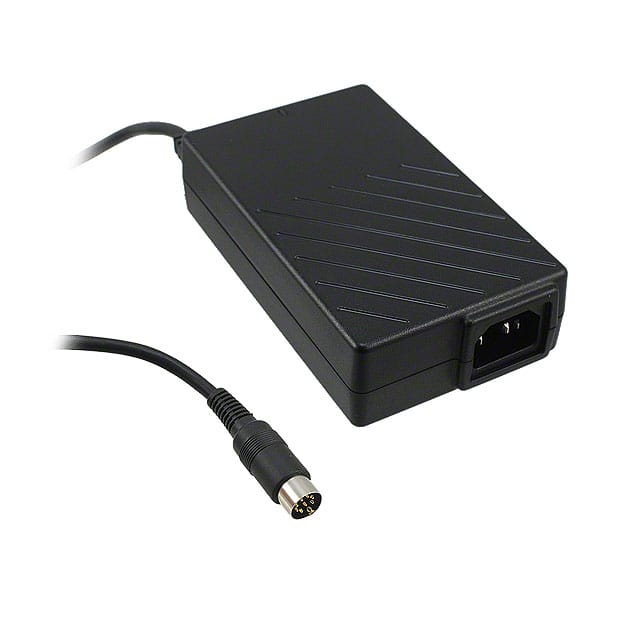

This AC/DC desktop adapter, part number MWA100024A-12A from Inventus Power, delivers a stable 24V output at 4.2A, totaling 101W of power. It meets Level V efficiency standards, ensuring optimal energy usage.
The adapter is designed for international use and features a medical application focus. It includes an IEC 320-C14 input connector and an 8-pin DIN output connector. The unit operates within a temperature range of 0°C to 60°C and has a maximum no-load power consumption of 500mW.
With dimensions of 132.0mm x 78.0mm x 34.0mm, it is housed in a Desktop (Class I) form factor. The input requires a cord, sold separately, with an available length of 72" (1.83m). Approval agencies include CB, CE, and cTUVus, indicating compliance with various safety and performance standards.
100-240 VAC.
24 VDC at 4.2A.
0°C to 60°C.
Level V.
DIN, 8 Pin.
Desktop (Class I).
CB, CE, cTUVus.
