| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

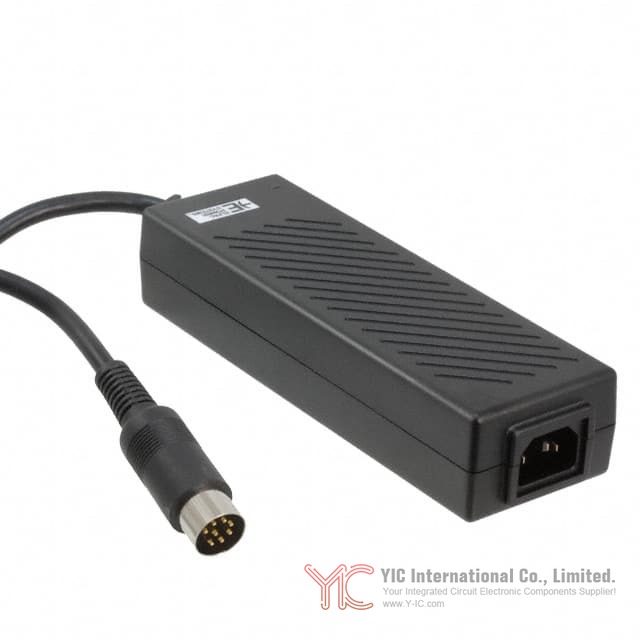

The Inventus Power MWA080018A-12A is an AC/DC desktop adapter designed for various applications, including medical use. It delivers a stable 18V DC output with a maximum current of 4.4A, providing a total power of 79W.
This adapter operates within a wide input voltage range of 100-240 VAC and features Level V efficiency, ensuring reduced energy consumption. The operating temperature range is from 0°C to 60°C. It includes a convenient IEC 320-C14 input connector and an 8-pin DIN output connector.
The unit has a compact desktop form factor (Class I) with dimensions of 132.0mm x 78.0mm x 34.0mm. It comes with a 72-inch (1.83m) cord. The no-load power consumption is a maximum of 500mW, further contributing to its energy efficiency. Approval agencies include CB, CE, and cTUVus, indicating compliance with international safety standards.
The MWA080018A-12A provides an 18V DC output at 4.4A.
The adapter has a power rating of 79W.
The operating temperature range is from 0°C to 60°C.
Yes, it meets Level V efficiency standards.
It uses an IEC 320-C14 input connector.
The dimensions are 132.0mm x 78.0mm x 34.0mm.
