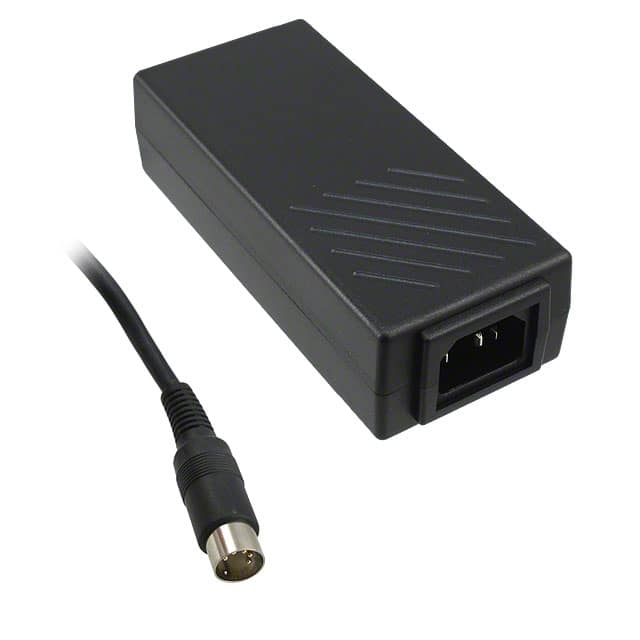

The Inventus Power MWA065024A-11A is a Class I, 72 Watt medical desktop power supply. It operates with an input voltage range of 85-264VAC and provides a stable 24V output at 3A. This power supply features high efficiency, meeting Level V standards, and boasts a high power density of 4.9W/in³.
Designed for demanding applications, it includes medical approvals such as EN60601-1 Class I 3.1 Edition and EMC safety compliance with IEC/EN 60601-1-2 4th edition. The unit offers low leakage current, over-voltage, over-temperature, and over-current protection, along with auto-restart short circuit protection.
With a compact size of 127.6mm x 55.9mm x 34.8mm, it utilizes natural convection cooling and has an operating temperature range of 0°C to 60°C. The power supply comes with a 5-year limited warranty and an expected lifetime of over 5 years, making it a reliable choice for medical equipment and other critical systems.
The MWA065024A-11A provides a 24V output voltage at a 3A current.
The power rating for this unit is 72 Watts.
The operating temperature range is 0°C to 60°C.
Yes, it has Medical Approval - EN60601-1 Class I 3.1 Edition and EMC safety - IEC/EN 60601-1-2 4th edition.
The typical efficiency at 115VAC is 85% and at 230VAC is 91%.
It comes with a 5-Year Limited Warranty.
