| Category | |
| Manufacturer Name | |
| Applications | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Medical Grade | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage |

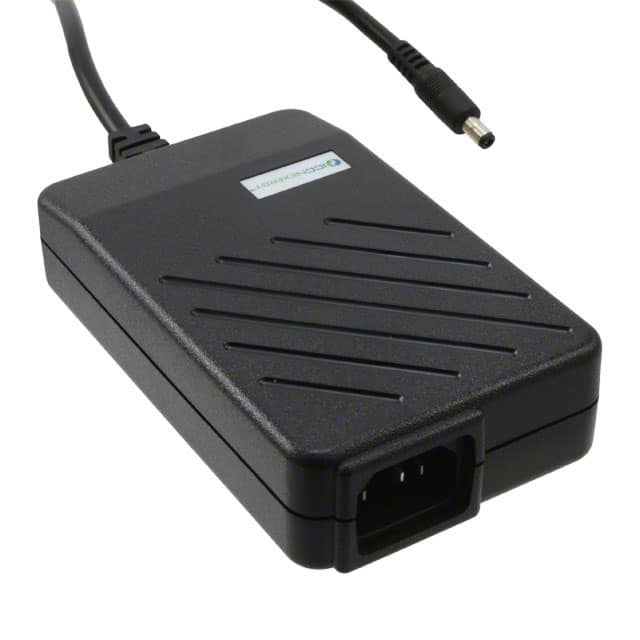

This Inventus Power MW4015-760-NC-BK is an AC/DC desktop adapter with a power output of 39W. It delivers a stable 15V output at a maximum current of 2.6A, making it suitable for various electronic devices.
The adapter is designed for international use, accepting input voltages from 100 to 240 VAC. It features a Level V efficiency rating, indicating good energy performance. The output connector is a standard barrel plug with specific dimensions (2.5mm I.D. x 5.5mm O.D. x 9.5mm), and the cord length is 1.52 meters (60 inches).
Designed with medical applications in mind, this adapter also includes a positive center polarization. Its physical dimensions are 127.0mm x 76.2mm x 33.0mm. The input connector is an IEC 320-C14 type, and the cord is sold separately.
The MW4015-760-NC-BK provides a 15V output voltage at a maximum current of 2.6A.
The adapter has a power rating of 39W.
The adapter accepts an input voltage range of 100 to 240 VAC.
The operating temperature range is from 0°C to 40°C.
It uses a Barrel Plug with dimensions 2.5mm I.D. x 5.5mm O.D. x 9.5mm.
The dimensions are 127.0mm in length, 76.2mm in width, and 33.0mm in height.
Yes, this adapter is listed for medical applications.
