| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
350 pcs
|
350 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Tape & Reel | |
| Voltage | |
| Width |

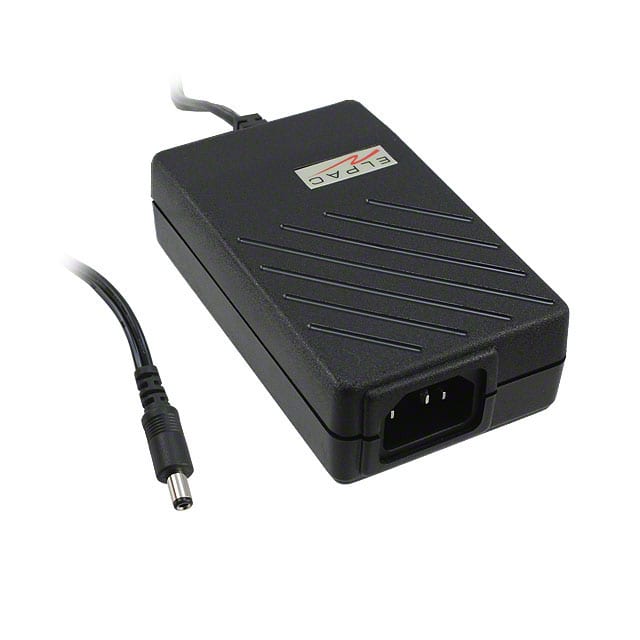

The Inventus Power MW2415-760-NC-BK is a 24W AC/DC desktop adapter designed for reliable power conversion. It operates with a 15V output voltage and a current rating of 1.6A, providing a total power output of 24W. The adapter features an efficiency of 80% and utilizes an IEC 320-C14 input connector, requiring a separate power cord.
The output is delivered through a standard barrel plug with dimensions of 2.5mm inner diameter and 5.5mm outer diameter, featuring a positive center polarization. This configuration is common for many electronic devices. The adapter is built in a desktop form factor, classified as Class I.
Designed for operation in environments with temperatures ranging from 0°C to 40°C, this adapter is suitable for international regions. Its mechanical dimensions are 108.0mm in length, 64.5mm in width, and 33.0mm in height. A key application for this adapter is in the medical industry.
Compliance agencies have approved this adapter, including CB and CE certifications. While RoHS and REACH compliance information is noted, it carries a low confidence level and requires verification.
The adapter has a power output of 24W.
The adapter provides a 15V output voltage and a 1.6A current.
It uses an IEC 320-C14 input connector. The power cord is sold separately.
The output barrel plug has a 2.5mm inner diameter (I.D.) and a 5.5mm outer diameter (O.D.).
The adapter is designed to operate between 0°C and 40°C.
The adapter measures 108.0mm in length, 64.5mm in width, and 33.0mm in height.
This adapter is primarily used in medical applications and is designed for international regions.
