| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Relative Humidity | |
| Ripple | |
| Storage Temperature | |
| Topology | |
| Voltage | |
| Width |

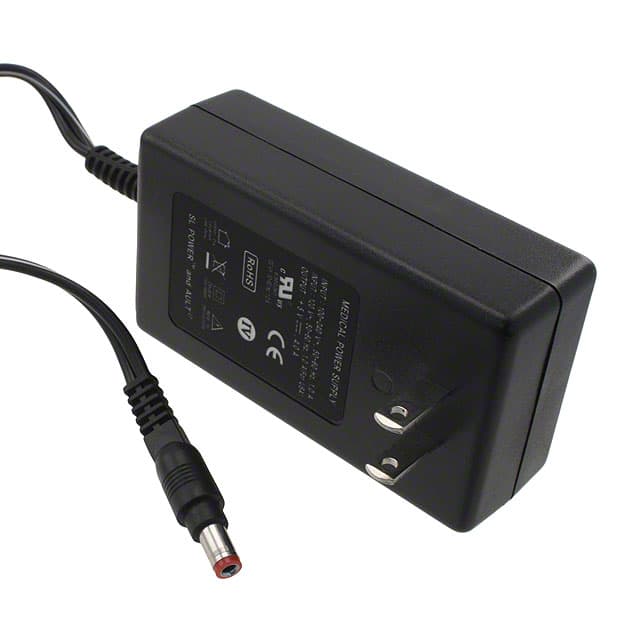

The SL Power Electronics MW173KB1203B01 is a versatile AC/DC power supply designed for various applications, particularly in the medical field. This desktop-style unit operates with a universal input voltage range of 100-240VAC, making it suitable for global use.
It delivers a regulated 12V output at up to 2.5A, providing a total of 30W of power. The power supply is designed to meet EISA requirements and achieves Level IV efficiency. Key electrical specifications include line regulation of +/-1% and load regulation of +/-5%, with a maximum ripple of 1% Vp-p.
The unit operates within a temperature range of 0°C to 40°C and features overcurrent and short circuit protection. Its compact dimensions are 95.0mm x 54.0mm x 33.0mm. The enclosure is made of impact-resistant polycarbonate.
Compliance includes CE and cULus approvals. The input connector is a NEMA 1-15P, and the output connector is a standard barrel plug (2.5mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. The cord length is 1.80 meters.
100-240VAC at 47-63Hz.
12V DC output at 2.5A, 30W total.
0°C to 40°C.
Desktop style with black 94V0 polycarbonate case.
Level IV efficiency per US Department of Energy standards.
100,000 calculated hours.
95.0mm x 54.0mm x 33.0mm (3.74" x 2.13" x 1.26").
