| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

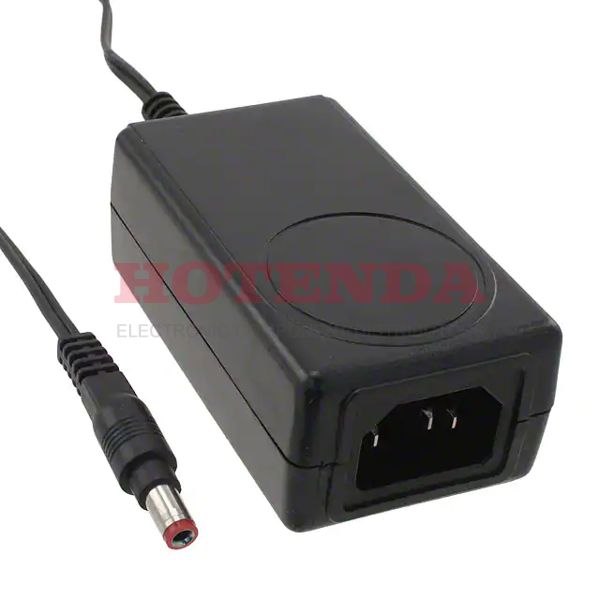

This AC/DC desktop adapter from SL Power Electronics, part number MW172KB1803F01, provides an 18W output at 18V. It is designed for medical applications and meets Level IV efficiency standards.
The adapter features an IEC 320-C14 input connector and a positive center barrel plug output (2.5mm I.D. x 5.5mm O.D. x 9.5mm). It operates within a temperature range of 0°C to 40°C and has a low no-load power consumption of 500mW maximum.
With a compact desktop form factor (Class I), the MW172KB1803F01 is suitable for international use. It has an input current rating of 1A and includes a 70.9" (1.80m) cord. The unit is approved by CE and cULus agencies.
The MW172KB1803F01 adapter has an output voltage of 18V and a power rating of 18W.
This adapter uses an IEC 320-C14 input connector and a barrel plug output with a 2.5mm I.D. x 5.5mm O.D. x 9.5mm size and positive center polarization.
The operating temperature range for this adapter is 0°C to 40°C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
The REACH status is REACH Unaffected.
