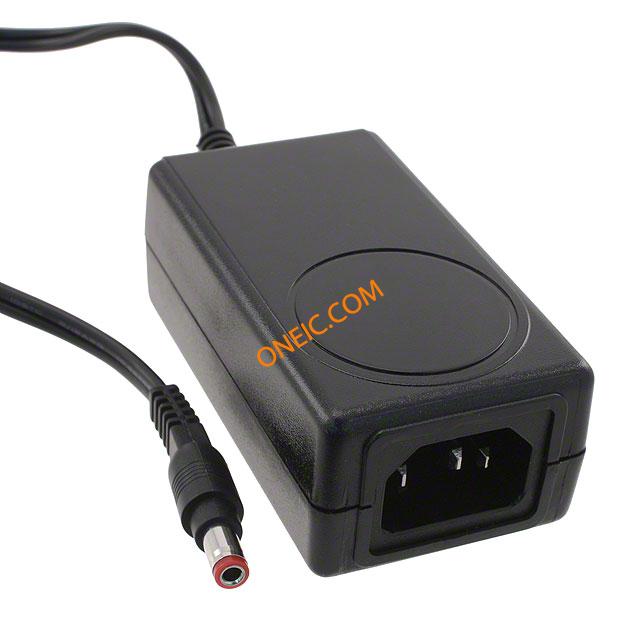

This SL Power Electronics MW170KB0903F01 is a medical-grade AC/DC desktop power supply designed for universal input voltage ranges from 100 to 240VAC. It delivers a regulated 9V output at 1.5A, providing a total power of 13.5W. The unit meets Level IV efficiency standards and offers typical line regulation of +/-1% and load regulation of +/-5%.
Key electrical specifications include a maximum input current of 0.4A at 90VAC and a line frequency range of 47-63Hz. The power supply operates within a temperature range of 0°C to 40°C and has a calculated MTBF of 100,000 hours.
The mechanical design features a desktop form factor with dimensions of 84.6mm x 46mm x 33mm. It utilizes an IEC 320-C14 input connector and a 2.5mm I.D. x 5.5mm O.D. x 9.5mm female barrel plug for output. The cord length is 1.80 meters (70.9 inches) with positive center polarization. The enclosure is made of impact-resistant polycarbonate.
Designed for medical applications, this power supply adheres to safety standards such as UL60601-1 and IEC/EN60601-1, along with EMC standards EN60601-1-2 and EN55024.
100-240 VAC, 47-63 Hz.
9V DC at 1.5A (13.5W).
0°C to 40°C.
Desktop (Class I) with IEC 320-C14 input connector and 2.5mm ID x 5.5mm OD barrel plug output.
Level IV efficiency with no-load power consumption below 0.5W.
18 ms minimum at 115VAC.
100,000 calculated hours.
