| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Relative Humidity | |
| Ripple | |
| SVHC Present | |
| Storage Temperature | |
| Voltage | |
| Weight | |
| Width |

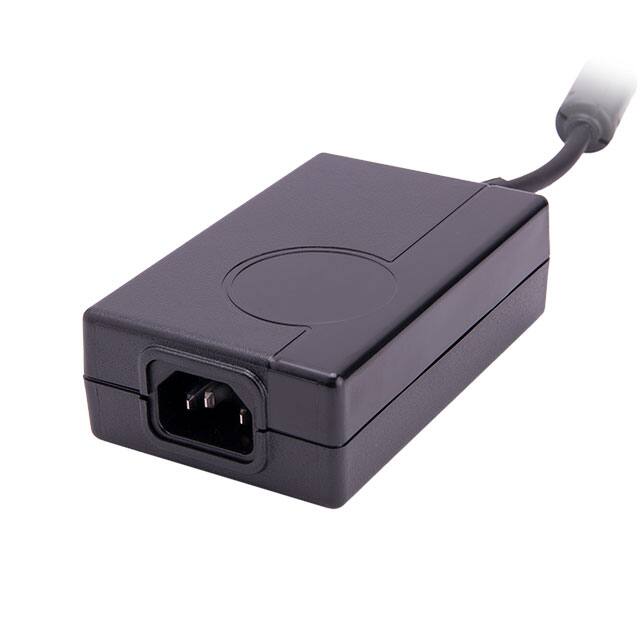

The Ault MW160RA0503F01 is a switch-mode, desktop-style AC/DC power supply designed for medical applications. It accepts a universal 100-240 VAC input and provides a regulated 5V output at up to 5A, delivering a total of 25W.
This power supply meets medical safety agency requirements and complies with EMI/RFI regulations, including CE compliance. It features a low ripple output with combined line, load, and cross regulation of +/-1%. The unit has an impact-resistant polycarbonate enclosure and operates within a temperature range of 0°C to 40°C.
Key specifications include a 47-63 Hz line frequency, 1.2A max input current at 90VAC, and internal primary current fuse with inrush limiting. The output is protected against overcurrent and short circuits. The dimensions are 107.0mm x 66.0mm x 37.0mm (4.20" L x 2.60" W x 1.46" H).
100-240 VAC ±10%.
Desktop (Class I).
0°C to 40°C.
5V at 5A.
25W.
107.0mm x 66.0mm x 37.0mm (4.20" x 2.60" x 1.46").
100,000 calculated hours.
